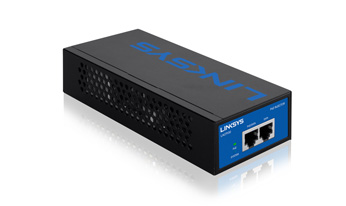

LINKSYS LACPI30
Gigabit High Power PoE Injector

OVERVIEW

  • Reduces the wiring cost of AC power by using standard Cat5 cable to provide both power and data
  • Range of 100 meters
  • Delivers power up to 30 Watts to PoE-powered devices
  • 2-year warranty period
  • DOWNLOAD DATA SHEET >>
    Close

    License Agreement

    Accept

    Do Not Accept

PoE+ and PoE Backward Compatibility

Supplies power to all IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) compliant PoE devices (including wireless access points, VoIP phones, and IP cameras).

Model: LACPI30
Standards: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3af, IEEE802.3at
Ethernet Ports: 1 10/100/1000 port, 1 10/100/1000 port with PoE of 30 Watts
LEDs: System LED (blue), PoE LED (green)
Power: 100~240V AC, 50~60 Hz, (2A max)
Enclosure Type: Metal
Dimensions (LxWxH): 154 x 73 x 36 (mm)
Weight: 393.5 grams (13.87 oz)
Mounting: Wall mount
Operating Temperature: 0ºC to 40ºC, (32ºF to 104ºF)
Non-operating Temp: -40ºC to 70ºC, (-40ºF to 158ºF)
Operating Humidity: 10% to 85%, Non-Condensing
Non-operating Humidity: 5% to 90%, Non-Condensing
Regulatory Certification: FCC Class A, CE Class A, IC, UL/cUL, CB
Warranty: 2-year Limited Warranty
Package Contents: LACPI30 Gigabit High Power PoE Injector
Power Cord
Quick Install Guide
Wall Mount Kit
4 Rubber Foot Pads
CD (Warranty and Safety Information)
