Checking the IP address of a computer with Windows operating system

Checking the IP address of the computer allows you to verify if the computer is getting a valid IP address from the router.  You have to check the TCP/IP properties of the Ethernet Adapter installed on the computer.

For instructions, please select from the options below for specific instructions on various operating systems:

Windows 10
Windows 8/8.1
Windows 7/Vista
Windows XP

Windows 10

Step 1:

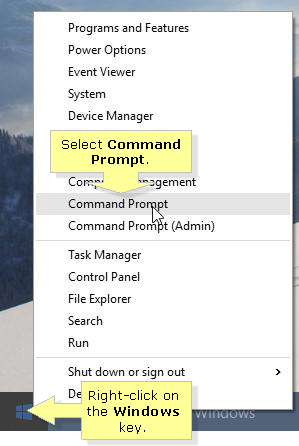

Right-click on the Windows key then select Command Prompt.

User-added image

Step 2:

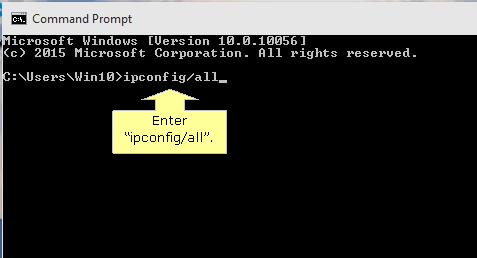

On the Command Prompt, enter “ipconfig/all” then press [Enter].

User-added image

Step 3:

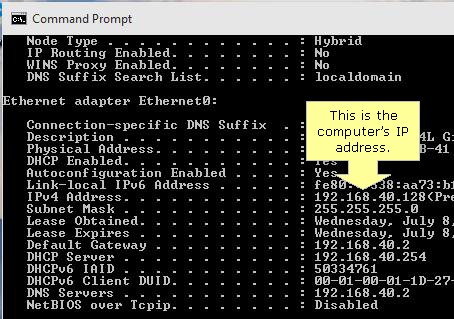

Check your computer’s IP address in the IPv4 Address section.

User-added image

NOTE:  They should have the same first three (3) octets as the Default Gateway.

If your computer is getting a 0.0.0.0 or 169.254.xxx.xxx IP address, you need to release and renew your IP address.  For instructions, click here.

Windows 8/8.1

Step 1:

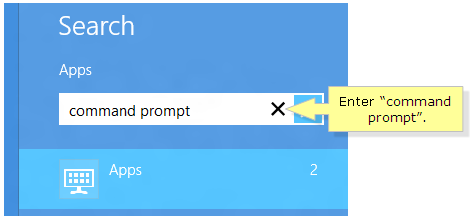

Press the Windows User-added image key on your keyboard and then enter “command prompt” to display the Command Prompt shortcut.  A search box on right side of the screen will appear.

User-added image

Step 2:

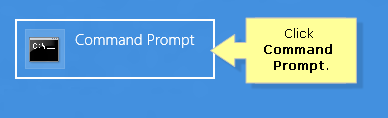

Click Command Prompt.

User-added image

Step 3:
On the Command Prompt, enter “ipconfig/all” then press [Enter].

Step 4:
Check your computer’s IP address in the IPv4 Address section.

User-added image

NOTE:  They should have the same first three (3) octets as the Default Gateway.

If your computer is getting a 0.0.0.0 or 169.254.xxx.xxx IP address, you need to release and renew your IP address.  For instructions, click here.

Windows 7/Vista

Step 1:
Click the Pearl User-added image button located at the bottom-left corner of the screen and in the Start Search enter “command prompt”, then press [Enter].

Step 2:

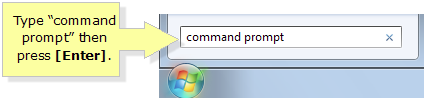

On the Search Programs and Files bar, enter “command prompt”, then press [Enter].

User-added image

Step 3:
On the Command Prompt, enter “ipconfig/all” then press [Enter].

Step 4:
Check your computer’s IP address in the IPv4 Address section.

User-added image

NOTE:  They should have the same first three (3) octets as the Default Gateway.

If your computer is getting a 0.0.0.0 or 169.254.xxx.xxx IP address, you need to release and renew your IP address.  For instructions, click here.

Windows XP

Step 1:

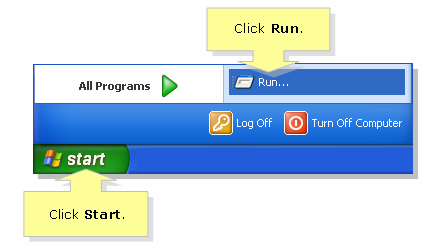

Click Start then click Run.

User-added image

Step 2:
When the Run window opens, enter “cmd” in the Open field then click OK.

Step 3:
In the Command Prompt window, enter “ipconfig/all” then press [Enter].

Step 4:

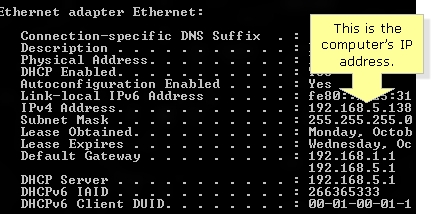

Check your computer’s IP Address.

User-added image

NOTE:  They should have the same first three (3) octets as the Default Gateway.

If your computer is getting a 0.0.0.0 or 169.254.xxx.xxx IP address, you need to release and renew your IP address.  For instructions, click here.
