Setting up a computer to obtain an IP address automatically

Configuring your computer to obtain an IP address automatically allows your networking device to assign a dynamic IP address to it.  Instead of manually entering the IP settings, which is time consuming, performing this procedure will ensure that the computer will get the correct TCP/IP settings.  This process is useful when:

  • Connecting a computer to a network with a DHCP server
  • Ensuring that the computer is getting the correct TCP/IP settings

To configure a computer to automatically get an IP address, you have to check the TCP/IP properties of the Ethernet adapter installed on the computer.  You will not be able to check or configure the TCP/IP protocols on your computer if an Ethernet Network Interface Card (NIC) is not installed on your computer.  If you are using a wired connection, make sure that the computer is properly connected to a network with a DHCP server.

For instructions, follow the steps below:


Windows 8 or higher
Windows 7/Vista
Windows XP
Mac® OS

Windows Vista/7


Step 1:
Click the User-added image Pearl button then click Control Panel.

Step 2:
Under the Network and Internet section, click View network status and tasks.


User-added image

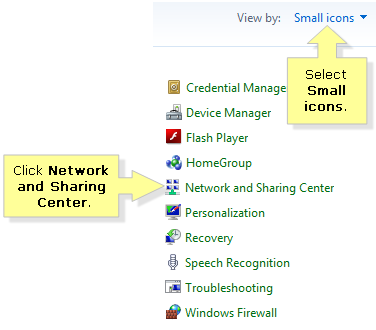

QUICK TIP:  At the upper right hand of the Control Panel window, you may change the window’s view type by selecting Large icons or Small icons.  Once you changed the view type, you can click on the Network and Sharing Center instead.  In this example, we selected Small icons.


User-added image


Step 3:

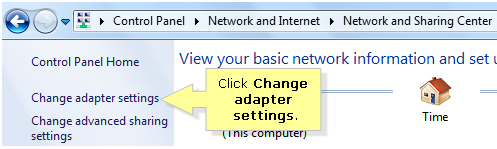

On the Network and Sharing Center window, click Change adapter settings.


User-added image


NOTE:  For Windows Vista, click Manage network connections.

Step 4:

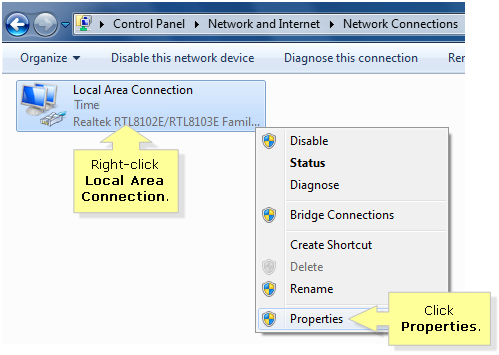

Right-click Local Area Connection, then click Properties.


User-added image


NOTE:  For wireless computers, select Wireless Network Connection instead, then click Properties.

Step 5:
On the Local Area Connection Properties window, select Internet Protocol Version 4 (TCP/IPv4) then click Properties.


User-added image


Step 6:

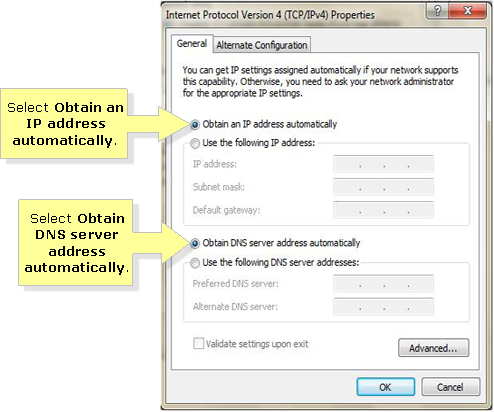

Select Obtain an IP address automatically and Obtain DNS server address automatically.


User-added image


Step 7:
Click OK to save the changes.

NOTE:  If the computer did not obtain an IP address, renew the IP address.  For instructions, click here.

Windows XP

Step 1:

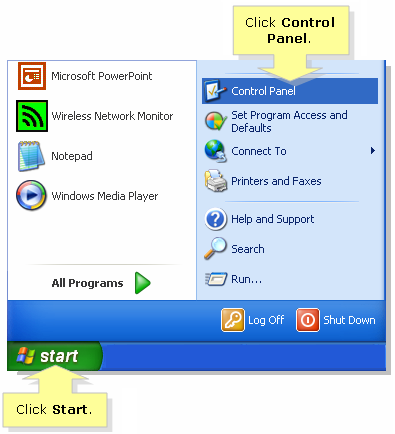

Click Start > Control Panel.


User-added image


Step 2:
On the Control Panel window, double-click Network Connections.

QUICK TIP:  Check the upper left corner of the Control Panel screen.  Click Switch to Classic View to easily locate the Network Connections icon.



User-added image


Step 3:
Right-click Local Area Connection then click Properties.


User-added image


NOTE:  For wireless computers, select Wireless Network Connection instead then click Properties.

Step 4:
On the Local Area Connection Properties window, select Internet Protocol (TCP/IP).  Then click Properties.


User-added image


Step 5:
Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons are selected.



User-added image


Step 6:
Click OK to save the changes.

NOTE:  If the computer did not obtain an IP address, renew the IP address.  For instructions, click here.

Mac® OS

Step 1:
Click the Apple User-added image icon then select the System Preferences... option.


User-added image


Step 2:

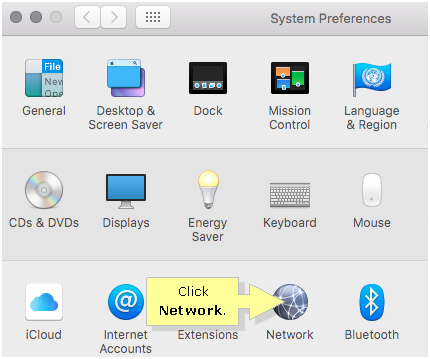

On the System Preferences window, click Network.


User-added image


Step 3:
On the Network window, look for the Show field and make sure that Built-in Ethernet is selected.


User-added image


NOTE:  For wireless computers, select Airport instead.  For higher versions, select Ethernet on the left panel.


User-added image


Step 4:
Under the TCP/IP tab, look for Configure IPv4 and make sure Using DHCP is selected.

NOTE:  In this example, 192.168.1.100 is used as the IP address that the Mac is automatically getting from the DHCP server.


User-added image


Step 5:
Click User-added image if you made any changes.

NOTE:  If the computer did not obtain an IP address, renew the IP address.  For instructions, click here.
