Overview of the Linksys Velop's web interface

With the latest firmware version, the Linksys Velop Intelligent Mesh WiFi System has now added web interface support for you to configure your Wi-Fi better and easier.  To learn how to access the Velop’s web interface, click here.

User-added image

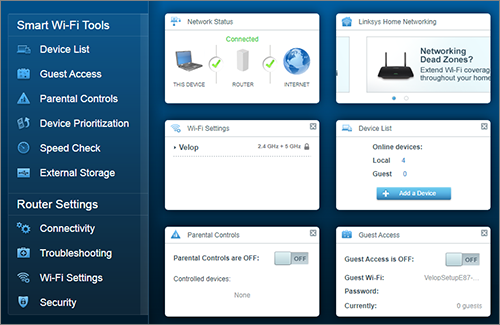

This article will give you an overview of your Velop's web interface.

NOTE:  Images may vary depending on the version of your Velop system.


Dashboard IconDescription and Image
Device List
Displays the list of devices that have connected to the Velop system.

User-added image

Guest Access
The Guest Access page allows you to configure your dual-band Guest Wi-Fi settings.  Your Guest Wi-Fi uses WPA2™ wireless encryption.

User-added image

Parental ControlsThe Parental Controls is used to manage usage and block internet access on a connected device or of specific sites per device.

User-added image

Device Prioritization
User-added image

Device Prioritization allows you to prioritize internet usage per device.  High Priority devices (wired or wireless) will always stay connected.  Normal Priority devices share the leftover capacity.  Drag and drop devices to change priority.

NOTE:  It is recommended to put devices used to stream video or play online games and other demanding applications on High Priority.

Device Prioritization uses the results of a speed test to determine the amount of your internet capacity to direct to high priority devices.  If you feel the results of the Velop speed test are inaccurate, you can input the speeds manually.  It is important that the numbers are accurate to get the most out of this feature.  It is recommended for you to go to http://speedtest.net on your laptop or contact your internet service provider (ISP) to find your actual speed and then enter it manually.

An automatic speed test will begin when you open the Device Prioritization page.
User-added image

User-added image

Speed test results

User-added image


To run another speed test or use the manual settings, click on the Speed test results to open the Device Prioritization Speed settings.

Speed CheckThe Speed Test feature is a helpful feature that measures the download (from the internet) and upload (to the internet) speeds of your Wi-Fi.  Speed test is a good way to find out whether you are getting the level of service provided by your ISP.

User-added image

Download speed is the rate at which internet content is transferred to your Velop system.

User-added image

Upload Speed is how quickly you can upload content to the internet.

User-added image

NOTE:  Speeds can vary depending on many factors, including how many devices are connected to your Wi-Fi and what those devices are doing.
ConnectivityThe Connectivity page has the following tabs:
  • Basic tab allows you to update your Admin Password, check for a Firmware Update and change your Time Zone.
User-added image
  • Internet Settings tab allows you to change your Connection Type, MTU Size, and enable MAC Address Clone.
  • Local Network tab allows you to configure your Router Details and DHCP Server.
  • Advanced Routing tab allows you to enable or disable NAT, Dynamic Routing (RIP) and configure Static Routing.
  • Administration tab allows you to enable or disable the Local Management Access, UPnP, Remote Access, Application Layer Gateway and Express Forwarding.
TroubleshootingThe Troubleshooting page allows you to diagnose and troubleshoot problems you may be having in your network.  It provides useful information about your connected devices and network details.  You can also reset or restart your Velop system on this page.

User-added image

Wi-Fi SettingsThe Wi-Fi Settings page allows you to change the wireless configuration of your Velop system.

User-added image

NOTE:  To configure advanced Wi-Fi Settings, please contact Linksys Support.
SecurityThe Security page allows you to keep your Wi-Fi safe from internet threats.  You can also configure port forwarding and DDNS settings.

User-added image
