Configuring the Access Filter List on the LNR0208C 2-Bay Network Video Recorder

The Access Filter List feature allows you to restrict Network Video Recorder access based on IP address.

Follow the steps below on how configure the access filter list in the LNR0208C:

Step 1:
Access the web user interface of the LNR0208C by entering the device’s IP address on a web browser.

NOTE:  The default IP address of the LNR0208C is 192.168.1.253 if it is not connected to a DHCP server.  Otherwise, use the IP address assigned by the DHCP server.

Step 2:

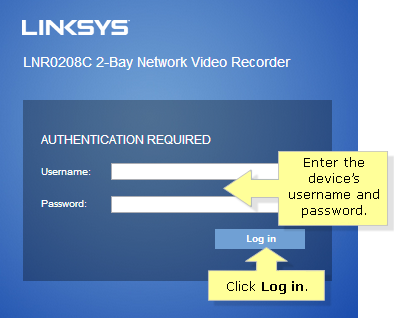

Enter the device’s username and password then click Log in.


Step 3:
Click the  icon.

Step 4:
Click Network then click Network Management.


Step 5:

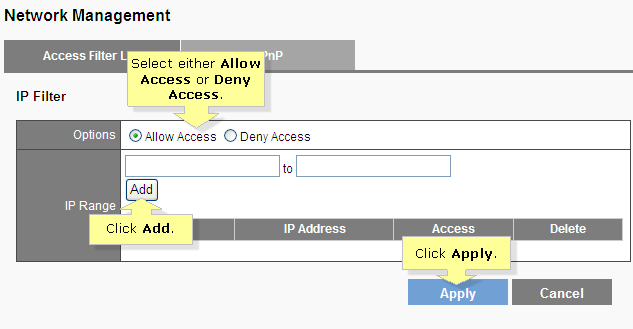

On the Access Filter List tab, select either Allow Access or Deny Access then enter the IP address range of the devices you want to set the allow or deny permission.  Click Add then click Apply.
