Getting to know the camera ports of the Linksys LCAD03VLNOD

The Linksys Outdoor Dome Camera 1080p 3MP Night Vision LCAD03VLNOD for Business is a network camera that offers a flexible video compression format and Power over Ethernet (PoE) functionality.  This article will show you the camera ports of the Linksys LCAD03VLNOD.

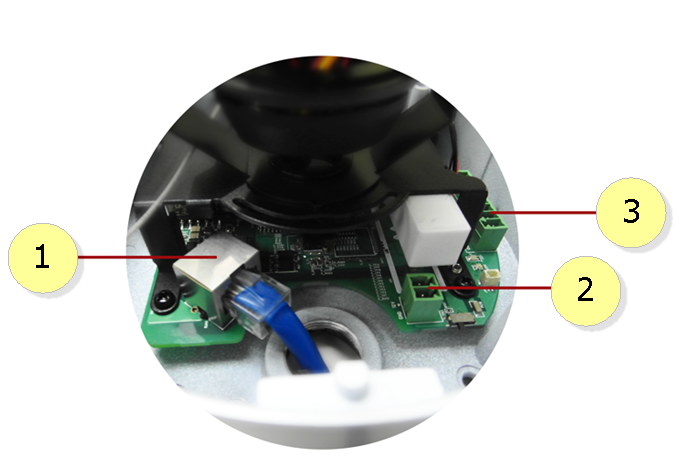

Linksys LCAD03VLNOD Ports
  1. Ethernet Port (PoE)
  2. 12 Volts Direct Current (VDC)
  3. Digital Input (DI) / Digital Output (DO) or Audio Cable

User-added image

To plug the cables into your Linksys LCAD03VLNOD, create a single cable first by joining the Ethernet cable, DI / DO or Audio cable and VDC cable together.  Insert it into the waterproof connector then plug it into the conduit hole after.

A compliant waterproof connector should be attached tightly to the conduit hole of the camera.  Then, all cables shall run through the connector for the camera to be IP67-compliant.

QUICK TIP:  All cables are user-supplied.

Below is the terminal blocks definition:

IMPORTANT:   Refer to the printed descriptions of the pin on the motherboard.

NOTE:  Below is an example image of an eight-pin terminal block.
User-added image

  Terminal Block
Pin No.FunctionPin No.Function
Pin 15 VPin 5Audio Out
Pin 2DOPin 6DGND
Pin 3DIPin 7Microphone / Line in
Pin 4DI / DO
GND
Pin 8DGND

Power Adapter Connection

QUICK TIP:   The pin descriptions are also printed on the motherboard.


NOTE:  Below is an example image of a two-pin terminal block.

User-added image

Terminal Block
Pin No.Function
Pin 112 VDC
Pin 2GND
