How to configure VLAN of the Linksys Dual-Band WiFi Router for your ISP

If your Internet Service Provider (ISP) requires Virtual LAN (VLAN) tagging, you will need to configure the VLAN settings provided by your ISP.

 Before you begin:
 Contact your ISP to request for settings or input details needed to configure VLAN.

Follow the steps below to configure VLAN of the Linksys Dual-Band WiFi Router:


Step 1:
Log in to the Linksys Dual-Band WiFi Router's web interface.  For instructions, click here.

Step 2:
Click the Configuration tab.

Step 3:
Click VLAN Setup.
User-added image

Step 4:

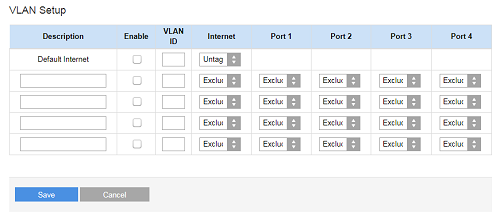

Enter VLAN settings provided by your ISP and click Save.


User-added image

IMPORTANT:  Make sure to check the box under the Enable column, of the same row where the VLAN settings is applied.

You should have successfully configured VLAN of the Linksys Dual-Band WiFi Router for your ISP.
