How to configure the Wireless MAC filtering on the Linksys Dual-Band WiFi Router

Wireless MAC Filter allows you to filter the devices that are connected to the router through their MAC addresses.  This feature either prevents or permits wireless clients with MAC addresses listed in the router to access the network.  To learn how to do this on your Linksys Dual-Band WiFi Router, follow the instructions below.

Step 1:
Log in to the Linksys Dual-Band WiFi Router web interface.  For instructions, click here.

Step 2:
Click the Configuration tab.

Step 3:
Click Wi-Fi.

Step 4:
Click Wireless MAC Filter.


User-added image

Step 5:

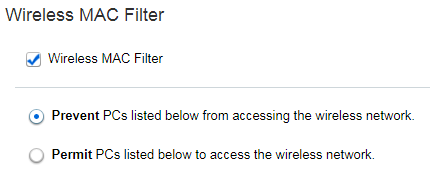

Check the box before Wireless MAC Filter to enable the feature.  Then, select the desired MAC filtering setup option.  You can select either:


  • Prevent PCs listed below from accessing the wireless network. - The wireless devices on the MAC Address Filter List will not have access to the wireless network.
  • Permit PCs listed below to access the wireless network. - Only wireless devices on the MAC Address Filter List will have access to the wireless network.

In this example, the MAC address values that you will enter in the list will be prevented from accessing the wireless network.  If you ticked the box that will permit wireless clients to access the wireless network, only the MAC addresses entered in the list can do so.

User-added image

Step 6:
Click on the Wireless Client List to view and select clients.

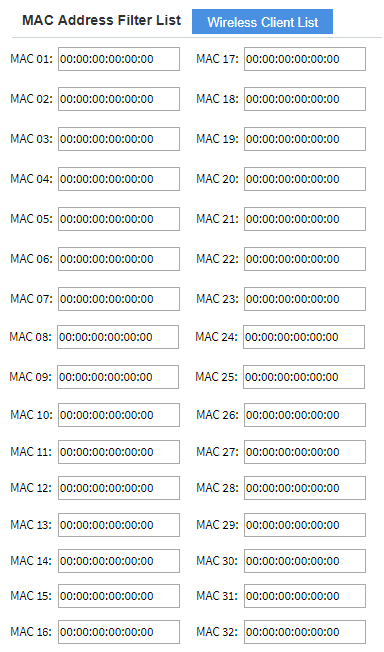

QUICK TIP:  In the MAC Address Filter List, you can manually enter the MAC address of the wireless device you want to prevent or allow access to the wireless network.  You can enter up to 32 MAC addresses.


User-added image

The Wireless Client List displays necessary information of the devices connected to your network, such as Client Name, Interface, IP Address, MAC AddressStatus and the option to Save to MAC Address Filter List

User-added image

Step 7:
Choose the device you want to either permit or prevent access to your network by checking the box before HTTP.

Step 8:
Click Add

Step 9:
Once done, click Close.  The MAC address of that device will now appear in the MAC Address Filter List

Step 10:
Click Save to apply settings.

You now have successfully configured the Wireless MAC filter feature of your router.
