Connecting devices using Wi-Fi Protected Setup™ (WPS) of the Linksys Dual-Band WiFi Router

Wi-Fi Protected Setup™ (WPS) makes it easy to add devices to your Wi-Fi without having to enter a Wi-Fi name and password.  This article will guide you on how to connect devices using the WPS feature of your Linksys Dual-Band WiFi Router.

Before connecting devices using WPS, you must first enable the WPS feature of your Linksys Dual-Band WiFi Router by following the steps below:


Step 1:
Log in to the Linksys Dual-Band WiFi Router's web interface.  For instructions, click here.

Step 2:
Click the Configuration tab.

Step 3:

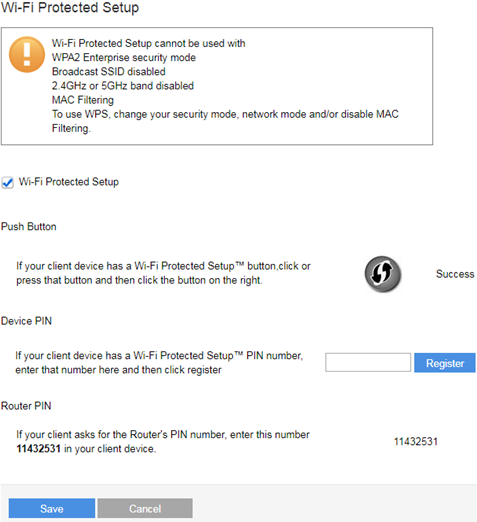

Click Wi-Fi then go to Wi-Fi Protected Setup.


User-added image

Step 4:
Check the Wi-Fi Protected Setup box and press Save.

User-added image

Now that you have enabled the WPS feature, you're now ready to connect devices to your router.  There are three methods you can use to connect devices to the router using the WPS feature: Push Button, Device PIN, and Router PIN.


Connecting a device using the Push Button

Step 1:
Log in to the Linksys Dual-Band WiFi Router web interface.  For instructions, click here.

Step 2:
Click the Configuration tab.

Step 3:
Click Wi-Fi then go to Wi-Fi Protected Setup.


Step 4:
If your client device has a WPS button, click or press that button and then click the User-added image button on the right.


User-added image

Connecting a device using its Device PIN

Step 1:
Log in to the Linksys Dual-Band WiFi Router web interface.  For instructions, click here.

Step 2:
Click the Configuration tab.

Step 3:
Click Wi-Fi then go to Wi-Fi Protected Setup.

Step 4:
If your client device has a WPS PIN number, enter that number in the field on the right and then click Register

User-added image

Connecting a device using the Router PIN

Step 1:
Log in to the Linksys Dual-Band WiFi Router web interface.  For instructions, click here.


Step 2:
Click the Configuration tab.

Step 3:
Click Wi-Fi then go to Wi-Fi Protected Setup.

Step 4:
Enter the Router's PIN number in your client device.  In this example, the Router PIN is 11432531.


User-added image
