The Linksys WUMC710 is a single band Wireless-AC Wi-Fi 5GHz Universal Media Connector Bridge with 4-Port Switch capable of connecting Ethernet devices to a wireless network. This media connector has Wireless-AC technology which is compatible with Wireless-N (5 GHz) and wireless-A routers or access points.
This article will give you an overview on the functions and features of the WUMC710.
QUICK TIP: LED stands for Light-Emitting Diode.

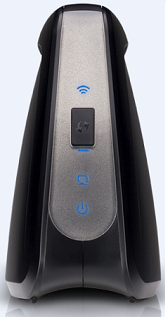

Wireless LED (Blue) - The Wireless LED lights up when a wireless connection is established. The LED flashes when the media connector is actively sending or receiving data over the wireless network.
Wi-Fi Protected Setup™ (WPS) button - Press this button to activate the WPS feature of your device.
Wi-Fi Protected Setup™ LED (Blue/Amber) - The WPS LED is located right under the WPS button. Take note of the following activities for the WPS LED:
• When the WPS LED flashes blue for approximately two (2) minutes, this means that the Wi-Fi Protected Setup™ process is currently taking place.
• If there is an error during the Wi-Fi Protected Setup™ process, the LED lights up amber.
Ethernet LED (Blue) - When a wired connection is detected, the Ethernet LED will light up. This LED will continually flash if the device is sending and receiving data over the wireless network.
Power LED (Blue) - The Power LED lights up when the media connector is powered ON. During booting activity, system self-test, firmware upgrade or when hardware error occurs, the LED light would blink rapidly.

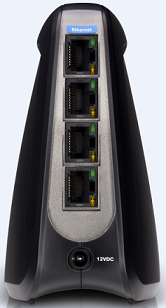

Ethernet ports – The WUMC710 has four Ethernet ports that allow it to connect to computers or other Ethernet network devices.
- Green LED
OFF - No link or connection established
ON - Link established
- Yellow LED
OFF - No data activity
Blinking - Sending or receiving data
Power port - The Power port connects the media connector to the power adapter.
Reset button – The Reset button is at the bottom of the device. There are two (2) ways to reset the device to its factory defaults – you can either press or hold the Reset button (using a pin) for five (5) seconds or restore to factory defaults in the media connector’s browser-based setup page. To learn more about resetting your device, click here.
The features of the WUMC710 also include:
DHCP server device setup - Computers that are connected to the media connector via Ethernet can easily perform the setup process even before the media connector is connected to the router. The device becomes a DHCP client.
IPv6 support - If the wireless router and the client device behind the media connector support IPv6, it would forward IPv6 traffic between the two devices.
Wireless Security – This media connector supports WEP, WPA-Personal and WPA2-Personal security.
To view the web-based setup page of the Linksys WUMC710, you need to use Internet Explorer 8 or higher, Google Chrome and Mozilla Firefox 8 or higher for Windows. For Mac®, you need to use Safari® 5 or higher, Google Chrome or Mozilla Firefox 8 or higher.
