LNR0208C 2-Bay Network Video Recorder hardware parts description

The data below enumerates the parts on the LNR0208C 2-Bay Network Video Recorder.

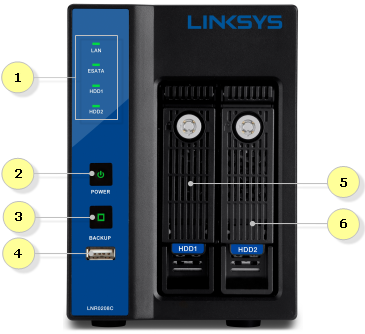

Front View

No.Hardware Part Description
1LED indicators for LAN, eSATA, HDD1, HDD2
2Power button
3USB BACKUP button for Auto video backup
41 USB 2.0 (Front USB port for video backup)
5HDD1 slot for the first Hard disk drive
6HDD2 slot for the second Hard disk drive

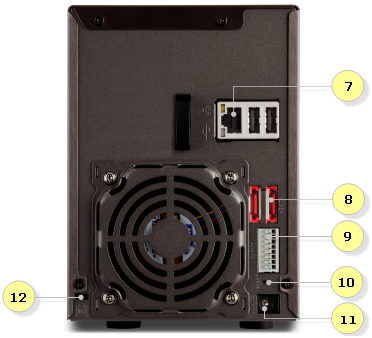

Back View

No.Hardware Part Description
7Gigabit Ethernet (LAN) Port
82 eSATA ports
9DI/DO (4 in 2 out)
Top to bottom: Vcc5V, GND, DI-1, DI-2, DI-3, DI-4, DO-1, DO-2
10Reset button
11Power connector
12K-lock security slot
