How to configure VLAN on the Linksys E9450

Follow the steps below to learn how to configure the Virtual LAN (VLAN) on your Linksys E9450 WiFi 6 Router.

NOTE:  This article is for Linksys E9450-AH, E9450-CN, E9450-JP, and E9450-KR.

Step 1:

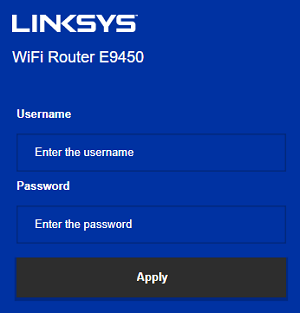

Log in to the Linksys E9450’s web interface.  For instructions, click here.

User-added image

Step 2:

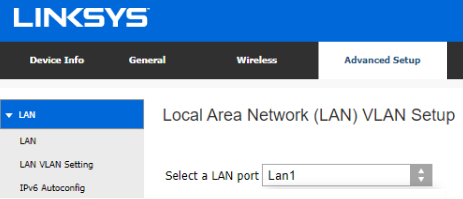

Click on the Advanced Setup tab.  Under LAN, select LAN VLAN Setting.


User-added image

Step 3:
Then Select a LAN port by clicking on the drop-down menu.


User-added image

Step 4:
To enable the VLAN mode, make sure to check the box before Enable VLAN Mode.


User-added image

Step 5:
Click on Add before the Remove button.  Then, enter the VLAN settings.


User-added image

Step 6:
Once done, click on Apply/Save to save changes.


User-added image

You should now have successfully configured the VLAN of your Linksys E9450.
