Configuring the USB storage settings of the Linksys E9450

This article provides an overview of the External Storage settings of the Linksys E9450 WiFi 6 Router.  For instructions on how to access this page, follow the steps below:

NOTE:  This article is for Linksys E9450-AH, E9450-CN, E9450-JP, and E9450-KR.


Step 1:
Access the web interface of the Linksys E9450.  Click
here for instructions.


Step 2:
Click on Advanced Setup > External Storage.

User-added image

The table below shows the settings that can be configured under External Storage.

Feature
Description

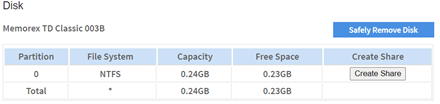

Disk

When a USB drive is detected, it will display the drive’s system and space information.

User-added image

USB Port Speed

The column of the USB Port Speed will populate based on the drive type you have connected to the router’s USB port.

User-added image

Create Share

Click this option to create a Share on the drive.

Safely Remove Disk

Before disconnecting a USB drive from the router, click on Safely Remove Disk.  This prevents the possible loss of data, which may occur if you remove the USB drive while it is transferring data.

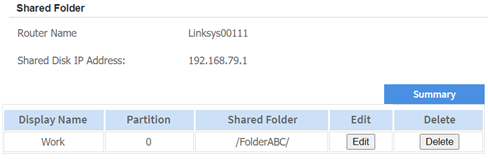

Shared Folder

The device name of the router is displayed in the Router Name section.  You can always change this name by going to Configuration > Local Network settings in the router's web interface.

The IP address of the disk is displayed in the Shared Disk IP Address section.


User-added image

Shared List

If you have created any shares, you will see a list of shares in the table.

 User-added image

Edit:  Click this to change the access settings of a shared folder.
Delete:  Click this to delete a shared folder.

Summary:  Click this to view a list of shared folders.

User-added image


Format Disk
Click this to format the drive.

NOTE:  All data in the drive will be deleted.


Refresh
Click to refresh the External Storage page.

FTP Server
To enable the FTP server feature, check the FTP Server checkbox and select a folder then click Save.

Administration
Under Administration, take note of the following:
  • Default groups are admin and guest
  • Default users are admin and guest
  • You can create new users and groups

The default admin password for the USB feature is admin even if you change the router’s password.  To change the password, click on Edit and make your changes.


Click on the links below for specific troubleshooting instructions.

How to create a Share
How to configure the FTP server
How to create users and group

How to create a Share

Before you begin:  To give permission to certain users, you will first need to create users and groups on the Administration page.  For instructions, click here.

Step 1:
Access the web interface of the Linksys E9450.  Click
here for instructions.


Step 2:
Go to Configuration > External Storage > Create Share.

User-added image

Step 3:

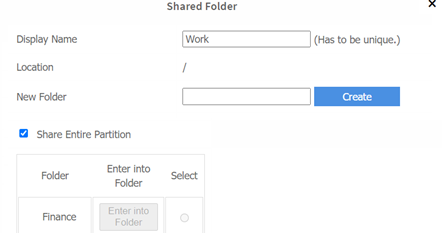

In the Display Name field, create a name for your share.

User-added image

Step 4:
Decide if you want to share the entire drive, create a folder, or select an existing folder in your drive.

  • If you are going to share the entire drive, leave the Share Entire Partition checked.

User-added image

  • If you are going to create a folder, enter a new folder name and click Create.  Uncheck the Share Entire Partition checkbox and select the folder you just created.

    User-added image

    User-added image

  • If you want to select an existing folder, navigate into the folder by unchecking the Share Entire Partition checkbox and clicking on the button next to Enter into Folder.

User-added image

Step 5:
Now select the groups that should have access to the content you are about to share and click Apply.

NOTE:  By default, the admin has access to any content on the drive.  If you haven’t created a group, go to Administration and create your users and add them to a group.


User-added image

Your share has now been created.

User-added image

How to configure the FTP server

Step 1:
Access the web interface of the Linksys E9450.  Click
here for instructions.


Step 2:

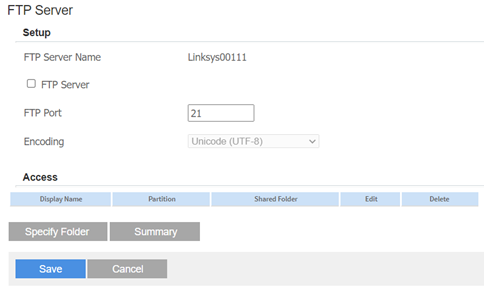

Click on Configuration > External Storage > FTP Server.

User-added image

Step 3:
Enable the FTP Server feature.


User-added image

Step 4:
Click Specify Folder.

Step 5:
In the Display Name field, enter a new name for your FTP folder.

User-added image

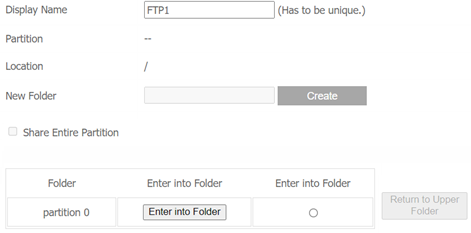

NOTE:  If the Partition is showing as --, click on Enter into Folder.

User-added image

Step 6:
Decide if you want to create a folder, share the entire partition, or select an existing folder.

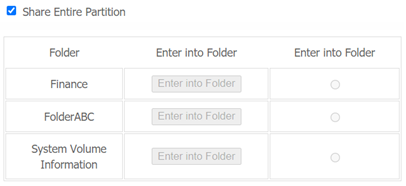

  • To share the entire partition, just check the Share Entire Partition box.

User-added image

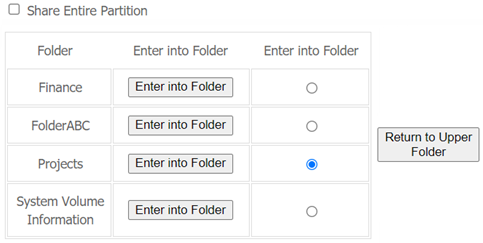

  • To select an existing folder, navigate into the drive and select the folder.

User-added image

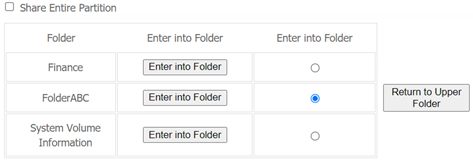

  • To create a folder, enter a new name in the New Folder section and click Create.  Then select the new folder.

User-added image

User-added image

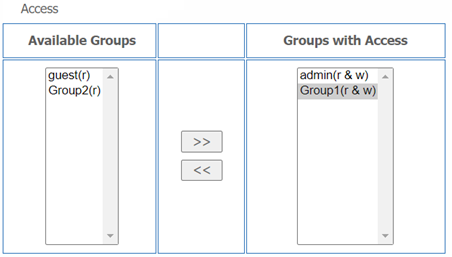

Step 7:
Now, select which groups should have access to the folders or partition.  Click the arrow buttons to move the selections to and from Available Groups or Groups with Access.  By default, the admin has access to the FTP content.  Click Save.

User-added image

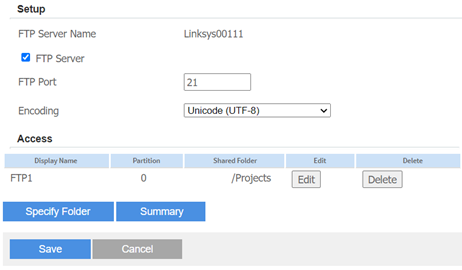

Step 8:
Make sure to click Save to apply all your settings.

User-added image

How to create users and group

Step 1:
Access the web interface of the Linksys E9450.  Click
here for instructions.


Step 2:
Go to Advanced Setup > External Storage > Administration.

Step 3:
If you need to assign users to a group, create a group first.  Otherwise, skip to Step 5.  Click Create New Group.

User-added image
Step 4:

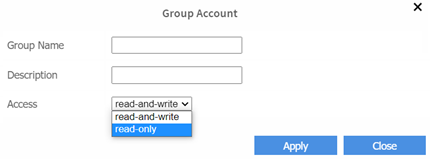

Give your group a name, description and choose either read-and-write or read-only.  Then, click Apply.  Create additional groups as needed.  Click Save.

User-added image
Step 5:
Click on Create New User.

User-added image

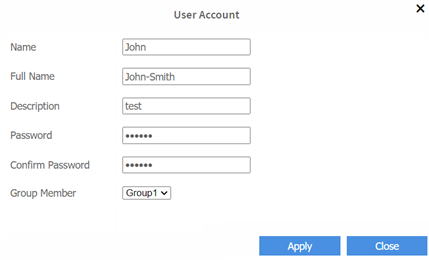

Step 6:
Update your User Account details and click Apply once done.

NOTE:  By default, the password is admin.

User-added image

Step 7:

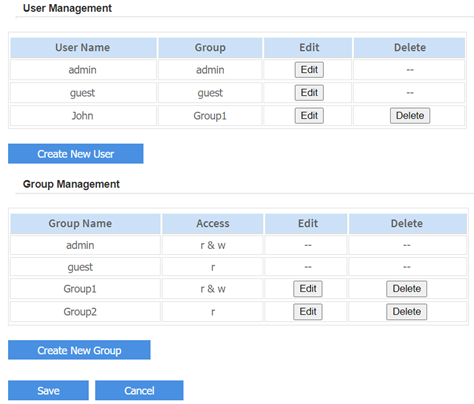

Make sure to click on Save at the bottom of the page to save all changes.

User-added image

User-added image

You have now created users and groups.
