Overview of the Linksys Velop's web interface

User-added image

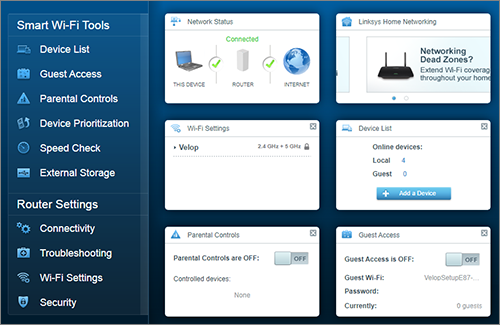

This article will give you an overview of your Velop's web interface.  To learn how to access the Velop’s web interface, click
here.


User-added image

NOTE:  Images may vary depending on the version of your Velop system.

Tools / SettingsDescription and Image
Device List
The Device List displays the list of devices that have connected to the Velop system.

User-added image

Guest Access
The Guest Access page allows you to configure your dual-band Guest Wi-Fi settings.  Your Guest Wi-Fi uses WPA2™ Wi-Fi encryption.

User-added image

Parental ControlsThe Parental Controls is used to manage usage and block internet access on a connected device or of specific sites per device.

User-added image

Device Prioritization
User-added image

Device Prioritization allows you to prioritize internet usage per device.  High Priority devices (wired or via Wi-Fi) will always stay connected.  Normal Priority devices share the leftover capacity.  Drag and drop devices to change from normal priority to high priority and vice versa.

NOTE:  It is recommended to put devices used to stream videos or play online games and other demanding applications on High Priority.

The Device Prioritization page uses the results of a speed test to determine the amount of your internet capacity to direct to high priority devices.  If you feel the results of the Velop speed test are inaccurate, you can input the speeds manually.  It is important that the numbers are accurate to get the most out of this feature.  It is recommended for you to go to http://speedtest.net on your laptop or contact your internet service provider (ISP) to find your actual speed and then enter it manually.

An automatic speed test will begin when you open the Device Prioritization page.

User-added image

Speed test results

User-added image

To run another speed test or use the manual settings, click on the Speed test results to open the Device Prioritization Speed settings.

User-added image

Speed CheckThe Speed Check feature helps measure the download (from the internet) and upload (to the internet) speeds of your Wi-Fi.  Speed Check is a good way to find out whether you are getting the level of service provided by your ISP.

User-added image

Download Speed is the rate at which internet content is transferred to your Velop system.

User-added image

Upload Speed is how quickly you can upload content to the internet.

User-added image

NOTE:  Speeds can vary depending on many factors, including how many devices are connected to your Wi-Fi and what those devices are doing.
External StorageThis External Storage feature of the node allows you to connect an external storage device into the USB port on the node and share the entire drive.

NOTE:  This feature is only available on the Linksys MX5300 Velop AX Whole Home WiFi 6 System.

User-added image

The following settings will be displayed:
  • The node’s name (e.g., Family Room and Living Room)
  • The hard drive’s information:
    • The name of the hard drive
    • The user and total storage capacity of the hard drive
    • The IP address of the drive
  • The Refresh button
  • The eject icon - Click on this to ensure that your hard drive will be safely removed, and file corruption prevented.
  • Authentication - To enable it, simply toggle the sliding switch to the ON position.

User-added image

When Authentication is ON, access to the storage device will be available only to those who have the username and password that you have set.  Authentication is disabled by default.


ConnectivityThe Connectivity page has the following tabs:
  • The Basic tab allows you to update your Admin Password, check for a Firmware Update and change your Time Zone.

User-added image

  • Internet Settings tab allows you to change your Connection Type, MTU Size, and enable MAC Address Clone.
  • Local Network tab allows you to configure your Router Details and DHCP Server.
  • Advanced Routing tab allows you to enable or disable NAT, Dynamic Routing (RIP) and configure Static Routing.
  • Administration tab allows you to enable or disable the Local Management Access, UPnP, Remote Access, Application Layer Gateway and Express Forwarding.
TroubleshootingThe Troubleshooting page allows you to diagnose and troubleshoot problems you may be having in your network.  It provides useful information about your connected devices and network details.  You can also reset or restart your Velop system on this page.

User-added image

Wi-Fi SettingsThe Wi-Fi Settings page allows you to change the wireless configuration of your Velop system.

User-added image

NOTE:  To configure advanced Wi-Fi Settings, please contact Linksys Support.
SecurityThe Security page allows you to keep your Wi-Fi safe from internet threats.  You can also configure port forwarding and DDNS settings.

User-added image
