Setting-Up 64-Bit WEP Wireless Security on a Linksys Router

The Wired Equivalent Privacy (WEP) key is an encryption that can be a 64-bit key with 10 hexadecimal digits or a 128-bit WEP key with 26 hexadecimal digits.  This will prevent other users from connecting to your wireless network.  It can also protect your wireless transmissions from being accessed or received by other users.

To set up a 64-Bit WEP key on your Linksys router, follow the steps below:

Step 1:
Access the router’s web-based setup page. For instructions, click here.

NOTE:  To learn how to access your router’s web-based setup page using a Mac® computer, click here.

Step 2:

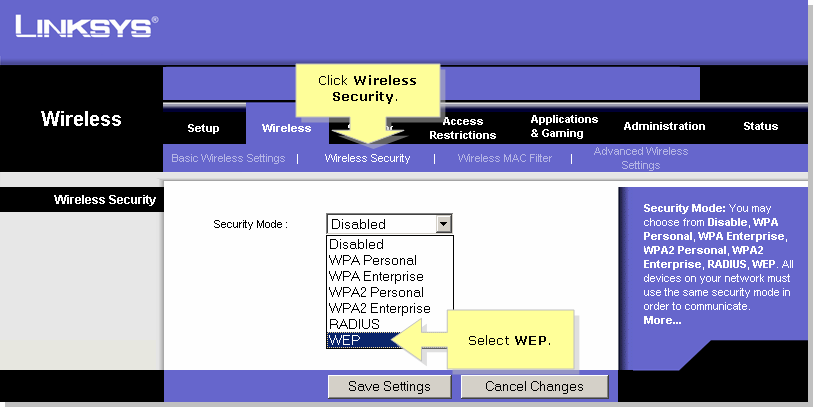

On the router’s web-based setup page, click the Wireless > Wireless Security.


Step 3:
On the Security Mode section, select WEP.



NOTE: If the screen on your router’s web-based setup page looks different, click here.

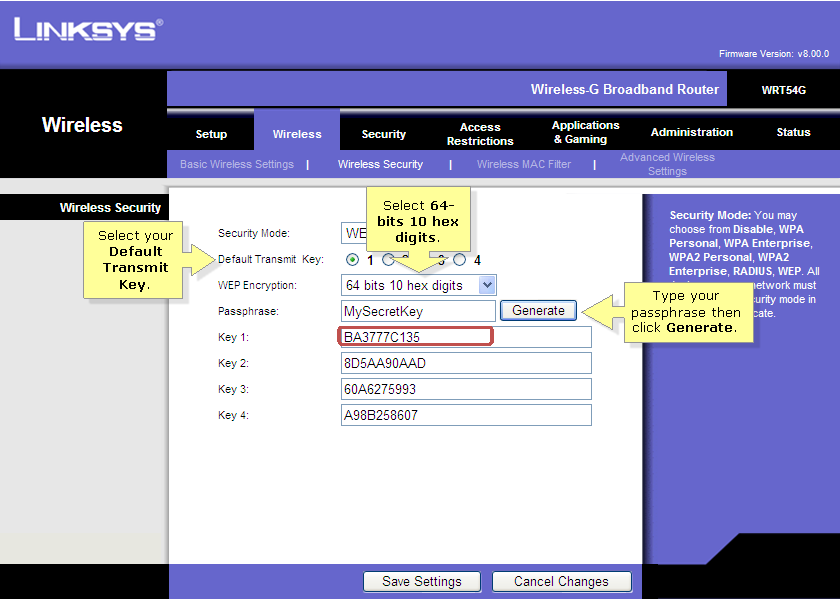

Step 4:
Select any number on the Default Transmit Key field to determine which key you’ll be using.  In this case, you select 1.

Step 5:
Under WEP Encryption select 64 bits 10 hex digits.

Step 6:
For Passphrase, type a wireless network password of your choice such as “MySecretKey,” then click Generate.

NOTE:  The passphrase is NOT your security key but rather a way for you to generate a password.  You should come up with a word that's unique for your network and is a combination of numbers and letters up to 16 characters.

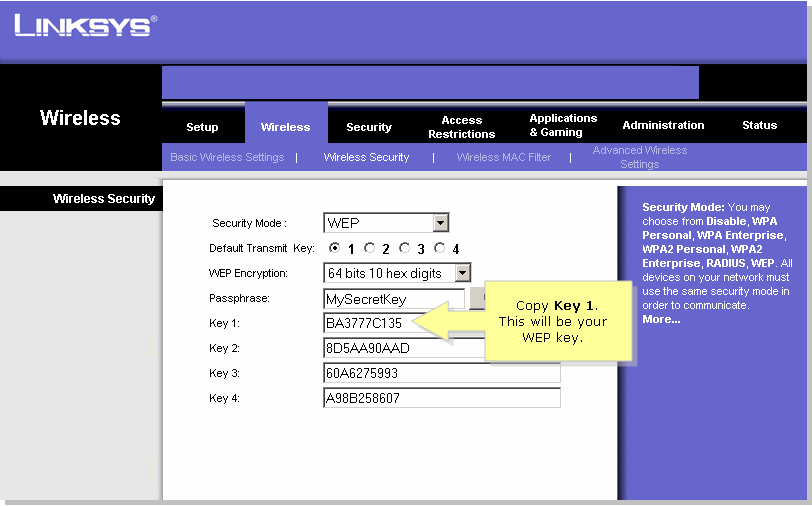

Step 7:
The result will be a string of random characters.  Copy the resulting string (in this case, copy the characters in the Key 1 field) since this will be the key to your wireless network.

NOTE:  An alternative way to set up you password, instead of generating it, is to manually enter your security key into Key 1.  Ensure to enter 26 hexadecimal digits where the letters may be from A to F and numbers may be from 0 to 9, respectively.

QUICK TIP:  Make sure not to give your password or security key to anyone unless you want to share your wireless Internet connection.



Step 8:
Click  once done.
