Setting up the Linksys RE6300 to Range Extender mode

Setting up the Linksys RE6300 AC750 BOOST WiFi Extender is easy with its browser-based setup feature.  There’s no need for an installation software or setup CD.

Before you start the setup process, ensure the following:


  • An active Wi-Fi connection.
  • Your Wi-Fi name (SSID) and Wi-Fi password / security key.
QUICK TIP:  The Wi-Fi name and password are from your existing Wi-Fi settings and are case sensitive.  For instructions on how to check your Wi-Fi settings, click here.

  • The Linksys RE6300 should be plugged into a power outlet.  Wait until the light is blinking orange before starting the setup process.
NOTE:  The images below may vary depending on your range extender's firmware version.  To update the firmware of your Linksys RE6300, click here for instructions.

Follow the steps below to set up your range extender.

Using a computer or a mobile device, connect your device to the range extender's default SSID, which is Linksys Extender Setup – xxx.

NOTE:  The xxx represents the last three characters of the Linksys RE6300’s MAC address.  This can be found on the label at the back of the device.

Step 2:
Open a web browser, then enter "http://extender.linksys.com" or "192.168.1.1" in the Address bar.

Step 3:
Click User-added image.

User-added image

Step 4:
The As a wireless range extender option will be selected by default upon setting up.  Click Next.

User-added image

Step 5:
Select your Wi-Fi.


NOTE:  If your Wi-Fi is also using a 5 GHz band, you should see it with the 2.4 GHz band.

User-added image

QUICK TIP:  If you have a hidden SSID, scroll all the way down the list and click Manually Enter Network Name and Password.  Otherwise, wait until it detects your Wi-Fi.

User-added image

Step 6:
Enter your Wi-Fi password in the field, then click Next.

User-added image

Step 7:
Once connected, you will be prompted to configure the extended wireless network that the range extender will be broadcasting.  Change the settings as you prefer or leave the defaults as is, then click User-added image.

QUICK TIP:  The extended wireless network is the Wi-Fi that your range extender will broadcast for nearby clients to connect to.


User-added image

Step 8:
Click Next if the Spot Finder indicates that the Linksys RE6300's location is Just right.  This feature determines the signal strength between your range extender and your router.  If your range extender is Too far or Too close, find a better location (recommended) then return to Step 1.

User-added image

Step 9:
Create an admin password to secure your Linksys RE6300.  You may also add a password hint.  Click
User-added image once you're done.

User-added image

Step 10:

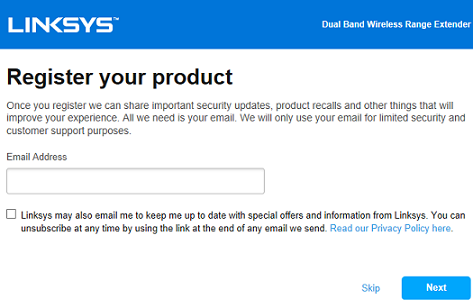

Your will be given the option to Register your product.  Enter your Email Address then click User-added image.

User-added image

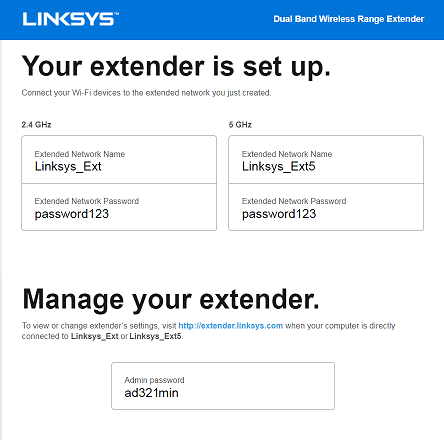

You should now have set up your Linksys RE6300 to as a range extender.

User-added image

For instructions on changing your range extender’s extended Wi-Fi settings, click here.
