How to reserve a DHCP address for a client on the Network Map Tool of Linksys Smart Wi-Fi Account

The Network Map Tool is exclusive for the latest Linksys Smart Wi-Fi Routers.  The Dynamic Host Configuration Protocol (DHCP) Reservation feature allows the router to reserve the lease of an Internet Protocol (IP) address for use of a specific device on your network, effectively ensuring that the router does not assign the IP address to other devices in the network.  This is helpful when managing multiple devices such as web cameras, network printers, or game consoles.

This article will provide you with instructions on how to manage your router’s DHCP Table using the Network Map Tool.

Before managing the DHCP Table, you must first log in to the Linksys Smart Wi-Fi Account.  For instructions, click here.

NOTE:  The Linksys WRT1900AC is used here as an example.

Reserve DHCP Address
Edit DHCP Reservation
Delete DHCP Reservation

Reserve DHCP Address


Step 1:
On the left navigation panel of your Linksys Smart Wi-Fi Account, click Network Map under Smart Wi-Fi Tools.

User-added image

Step 2:
Click the Connection Type icon beside your chosen device then select Reserve DHCP Address.


User-added image

You will now see a Reserving… message as shown in the image below.  This will disappear once an IP address has been reserved for your client.



Edit DHCP Reservation


Step 1:
Click Network Map.

Step 2:

Click the Connection Type icon beside your chosen device then select Edit DHCP Reservation.

NOTE:  When a client is part of the DHCP Reservation table, the option Reserve DHCP Address will be replaced with the option Edit DHCP Reservation.

User-added image

Step 3:
In the Reserved Addresses section, enter the device’s new Device Name and IP Address then click Save.

User-added image

Step 4:
Click .

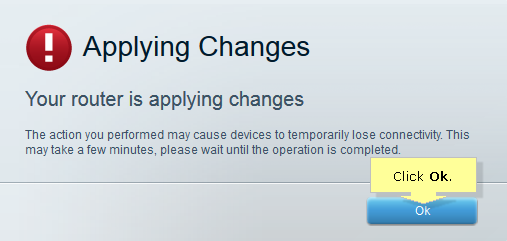

The Applying Changes message will show then disappear once DHCP Table has been updated.

Step 5:
Click Ok.



NOTE:  Another way to reserve a DHCP address is by going to the Connectivity Tool > Local Network tab > DHCP Reservations button.  To learn how to configure DHCP Reservation using your Linksys Smart Wi-Fi Account, click here.

Delete DHCP Reservation

Step 1:
Click Network Map.

Step 2:

Click the Connection Type icon beside your chosen device then select Edit DHCP Reservation.

User-added image

Step 3:
Click Delete.

User-added image

Step 4:
Click .

The Applying Changes message will show then disappear once your device has been removed from the DHCP Table.

Step 5:
Click Ok.
