Getting to know the Linksys 16-Port Gigabit Metallic Switch, SE3016

The Linksys 16-Port Gigabit Metallic Switch, SE3016 is an unmanaged switch that allows you to add up to 16 devices to your home or office network with plug-and-play installation.  The Gigabit ports provide 10 times faster connection than ordinary 10/100 Ethernet connections.

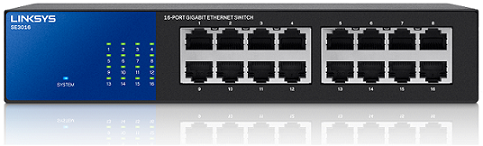

Front Panel

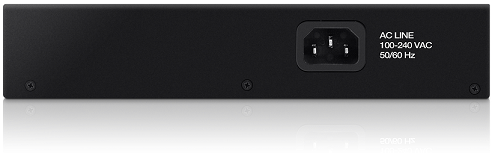

Back Panel


Product Features
  • Durable metallic chassis
  • Quality of Service (QoS) for better audio and video streaming 802.1p
  • Power saver detects unused ports to minimize power usage
  • Auto-sensing ports adjust to maximize data flow rates for 10/100/1000 Mbps
  • Rack-mountable
LEDColorDescription
System LED

Blue SolidNormal Operation
OFFPower OFF
Front LEDs Link/Act

Green Solid1000 Mbps Speed Link up
Green Flashing1000 Mbps Speed Activity
Port Speed10/100/1000 Mbps
ProtocolIEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az
LEDs

System LEDBlue
Link/ActGreen
Dimensions42 x 255.5 x 133 mm
Weight0.886 kg
PowerPower Cord only (Internal AC 100-240 V ~ 50/60 Hz)
MountableRack


Environmental



Temperature
Operating0° C~ 40° C (32° F ~ 104° F)
Storing-20° C ~ 70° C (-4° F ~ 158° F)
Humidity
Operating10 ~ 90% (non-condensing)
Storing5 ~ 90% (non-condensing)
