How to make use of the DNS Local Database feature of LRT2x4

The Domain Name System (DNS) Local Database feature allows you to search the intranet services much faster.  You don’t need to remember the IP addresses of the devices and you also can access them more easily. More importantly, it doesn't need to build an additional DNS server as it can be configured through the LRT router’s web-based setup page.

The example below demonstrates how to make use of the DNS Local Database feature of your Linksys Gigabit VPN router.

In the topology below, there are Web server, Mail server, and FTP server clients in the local network.  We can resolve their hostnames of DNS Local Database on different devices such as local LAN PC, Gateway to Gateway VPN remote PC, and PPTP client.

Follow below steps to configure DNS Local Database.

Configure DNS Local Database
Resolve hostnames with command nslookup

ClientHost NameIP Address
LAN PC 192.168.1.100
Web Serverbelkin-web.com192.168.1.200
Mail Serverbelkin-mail.com192.168.1.201
FTP Serverbelkin-ftp.com192.168.1.202

User-added image

Configure DNS Local Database

Step 1:
On your web browser, access your Linksys Gigabit VPN router’s web-based setup page.  For instructions, click here.

Step 2:

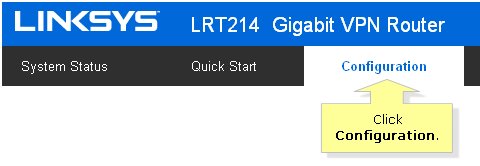

Click Configuration.

User-added image

Step 3:

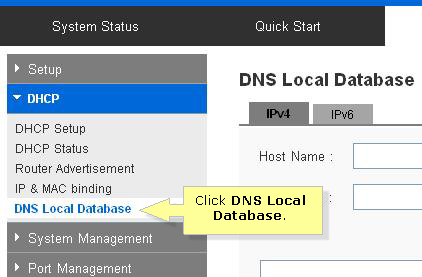

Click DHCP > DNS Local Database.

User-added image

Step 4:

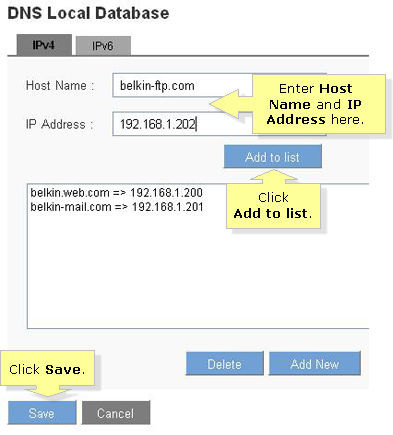

Enter the Host Name and IP Address of the three (3) rules.  Click Add to list after every instance.  Then click Save.

User-added image

NOTE:  When you enable DNS local database, you have to set the IP address of the router as DNS server on your computer.  It will be Obtain DNS server address automatically by default.

Resolve hostnames with command nslookup

Use the Windows CMD or command prompt to check the LAN PC’s DNS server.

NOTE:  In this example, Windows 8 operating system is used.

Step 1:

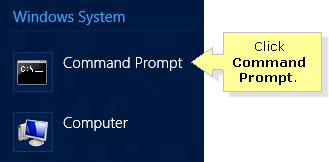

Click the User-added image icon in the Charms bar.  Enter “command prompt” in the search field then click on the icon in the search results.

User-added image

Step 2:
Type “ipconfig/all” then press Enter.

User-added image

Step 3:

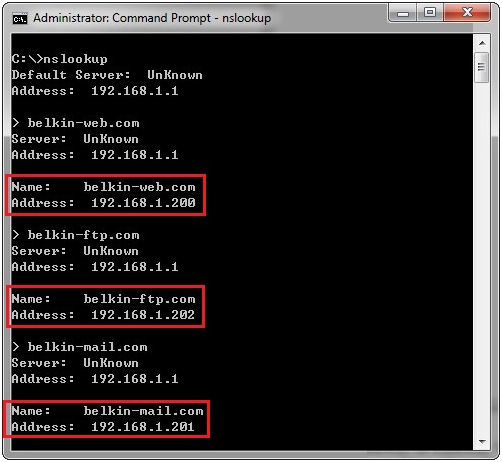

Type “nslookup” then press Enter.

User-added image

You should now be able to access the server using the hostname for the following:

Login FTP server
Configure Outgoing Mail Server
Browse Web server

Login FTP server

User-added image


Configure Outgoing Mail Server

Step 1:

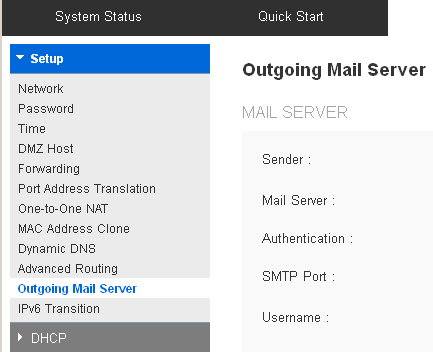

Access your router’s web-based setup page.  Under Setup, click Outgoing Mail Server.

User-added image

Step 2:
Enter the details as shown below.

User-added image

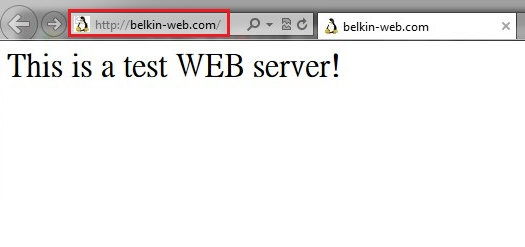

Browse Web server

User-added image
