Setting up the first or primary node of your Velop system using an Android™ device

User-added image

Setting up the Linksys Velop Intelligent Mesh WiFi System is easy through the Linksys app.  The Linksys app automatically identifies the nodes to be set up and it provides an animated setup guide explaining the entire process.  In addition, each node has an integrated Bluetooth® radio, making the setup process secure, seamless, and simple.  Follow the steps below to learn how to set up your first node using an Android™ device.

Requirements:

1.  The latest Linksys app installed from the Google Play™ store
2.  A mobile device running on at least Android™ 4.1 or later
3.  An active internet connection through a modem or modem router (gateway)

Directions

Step 1:
Launch the Linksys app.

User-added image

Step 2:

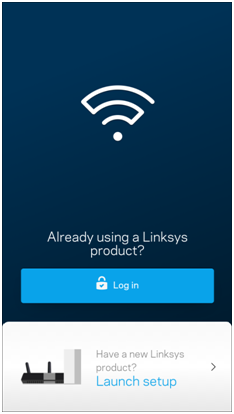

Tap Launch setup.


User-added image

Step 3:

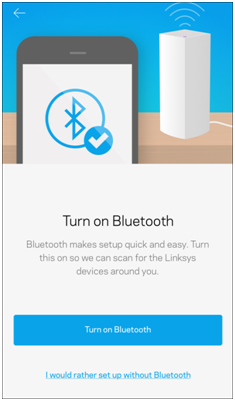

You may be prompted to turn ON your Bluetooth.  Bluetooth is used for setup purposes only.  Tap Turn on Bluetooth to automatically turn ON the Bluetooth.

User-added image

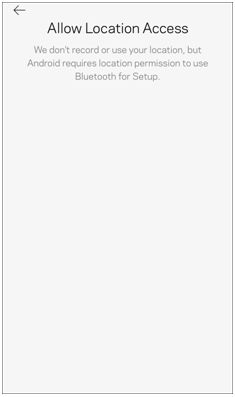

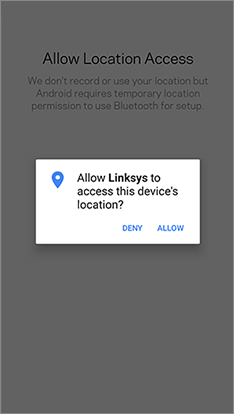

NOTE:  Some Android devices may prompt you to turn ON Location services when Bluetooth is enabled.  Tap ALLOW when the pop-up window appears.

User-added image

Step 4:

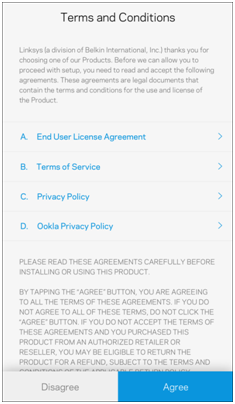

Read the Terms and Conditions and tap Agree to continue.

NOTE:  The Terms and Conditions agreement will only appear if it's the first time you launched the Linksys app.

User-added image

Step 5:

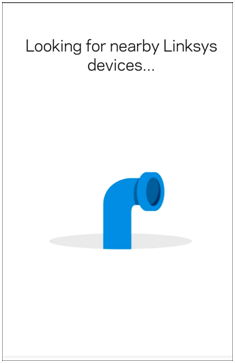

Setup will look for your node.

User-added image

Step 6:

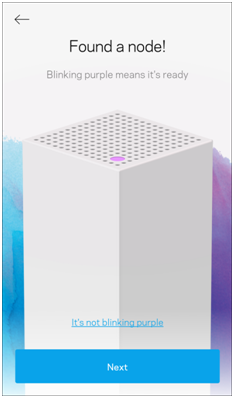

Once your node has been found, tap Next.

User-added image

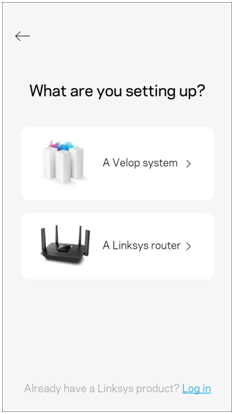

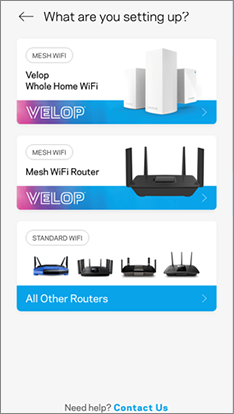

NOTE:  If the node is not found, you may be prompted to select what type of device you are setting up.  Make sure to select Velop Whole Home WiFi.

User-added image

Step 7:
Setup will now check for your internet connection.

User-added image

Step 8:
When internet is detected, you may proceed to Step 15.  If internet is NOT detected, you will be asked to check a series of wiring connection from your modem to your router.

User-added image


Step 9:

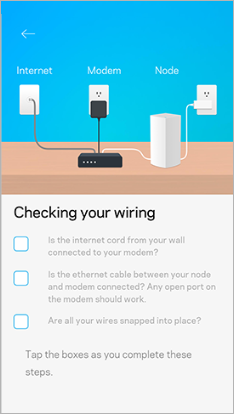

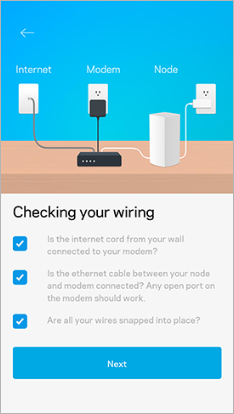

Tap the boxes as you complete checking the series of wiring connection.  Then, tap Next.

User-added image

Step 10:
Setup will now ask you to perform a quick restart for your modem.  If you don't need to enter any ISP settings, tap Next.  If you opt to enter ISP settings, tap Do you have ISP settings to enter? link below the Next button.

User-added image

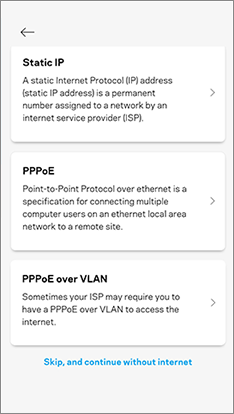

IMPORTANT:  If your ISP setting is Static IP, PPPoE or PPPoE over VLAN, you will be asked to enter these settings manually.  If you would just like to proceed without internet connection, tap Skip, and continue without internet
.

User-added image

Step 11:

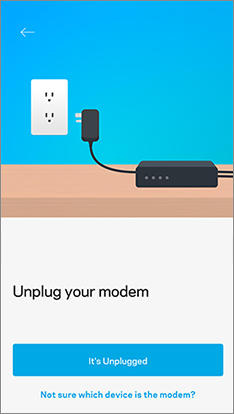

To perform a quick restart for your modem, you will be asked to unplug your modem.  Unplug your modem and tap It's Unplugged to proceed.

User-added image


Step 12:

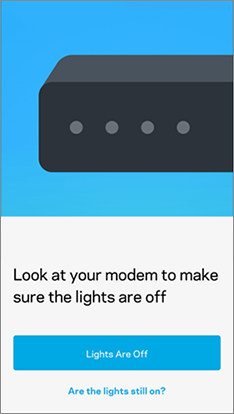

Make sure the lights on your modem are all turned off.  Tap Lights Are Off to proceed.

User-added image

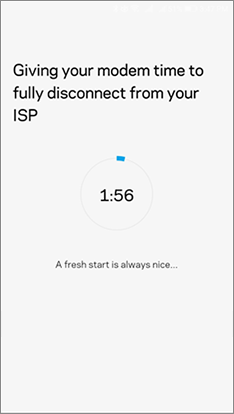

You will be asked to give your modem time to fully disconnect from your ISP.  Wait for 2 minutes.

User-added image


Step 13:

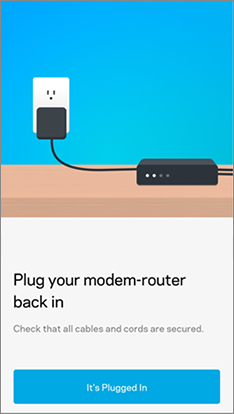

After 2 minutes, plug your modem / modem-router back in.  Tap It's Plugged In when done.

User-added image

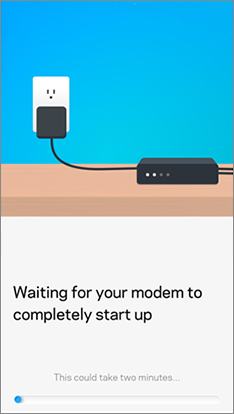

Wait for your modem to completely start up.  This could take 2 minutes.

User-added image


Step 14:

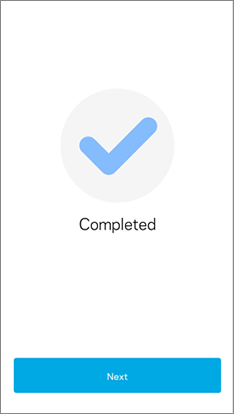

A Completed screen will appear once startup is done.  Tap the Next button.

User-added image


Step 15:

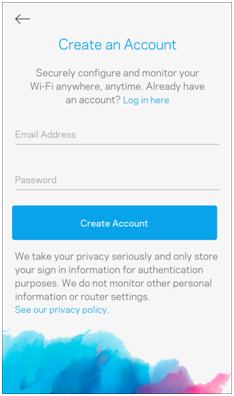

C
reate a Linksys cloud account by entering an email address and password in the fields provided.  Tap Create Account to proceed.  If you already have an account, tap on Log in here

User-added image

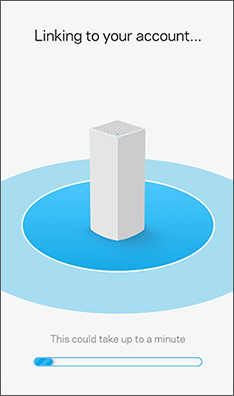

Setup will link your account.  Wait for at least 1 minute.

User-added image

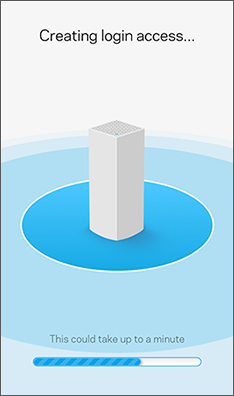

After linking, setup will create login access.


User-added image

Step 16:

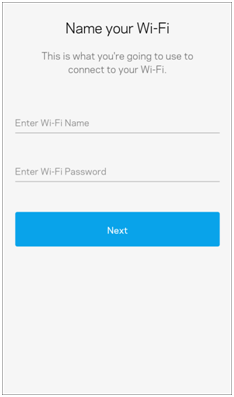

Personalize your home Wi-Fi by creating a Wi-Fi name and password.  Once done, tap Next.

User-added image

If you are prompted to connect to your new Wi-Fi name, go to your mobile phone's Settings > Wi-Fi and connect to your new Velop Wi-Fi name.  If you closed the Linksys app, reopen it to continue setup.

Step 17:

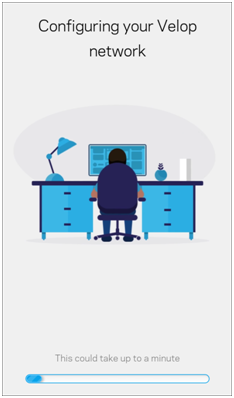

The Linksys app will now configure your Velop network.

User-added image

Step 18:

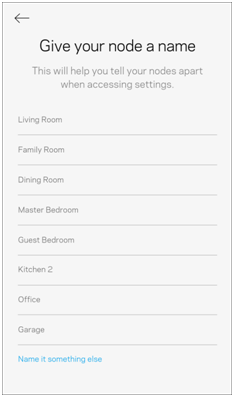

Give your node a name then tap Next.

User-added image

NOTE:  It is recommended that the location name corresponds to the actual location of your node in the home.  This will allow you to better identify multiple nodes through the Linksys app.  To customize the name, tap Name it something else.

Step 19:

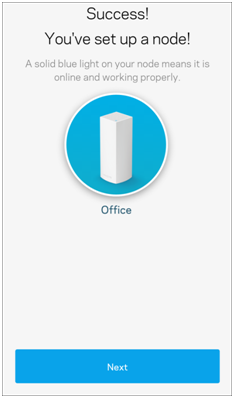

On the Success! screen, tap Next.

User-added image

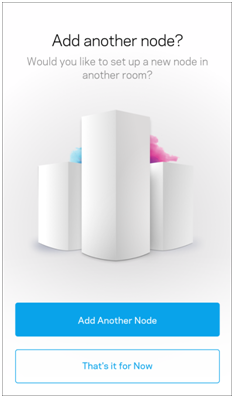

NOTE:  If you want to add a node, tap Add Another Node.  Otherwise, tap on That’s it for Now.  You can also add a node later by logging in to the Velop dashboard.  For instructions, click here.

User-added image


Step 20:

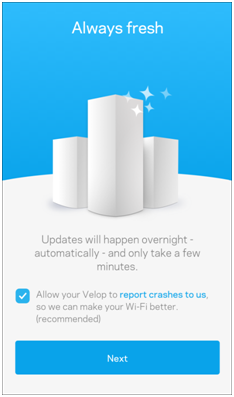

Once the Always fresh screen appears, tap Next.

User-added image

The node will do a firmware check to see if your node is up-to-date.

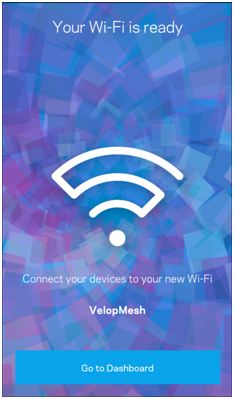

If a new firmware is available, the Linksys app will update automatically.  Otherwise, you will land on the Your Wi-Fi is ready screen.

User-added image

IMPORTANT:  After setting up your node, change the Velop’s admin password.  A random, secure admin password was created during setup (this password will not be displayed).  Use the admin password to log in to your Velop system if you don’t have an internet connection or if the server is temporarily down for maintenance.  To learn how to change the admin password, click here.
