Setting up the first or primary node of your Velop system with an iOS device

User-added image

Setting up the Linksys Velop Intelligent Mesh WiFi System is easy through the Linksys app.  The Linksys app automatically identifies the nodes to be set up and it provides an animated setup guide explaining the entire process.  In addition, each node has an integrated Bluetooth® radio, making the setup process secure, seamless, and simple.  Follow the steps below to learn how to set up up your first node using an iOs device.


Requirements:

  1. The latest mobile Linksys app from the App Store
  2. A smart phone or tablet with iOS 9.1.0 or later
  3. An active internet connection from a modem or modem router (gateway)


Directions

Step 1:
Launch the Linksys app.


User-added image

Step 2:
Tap Launch setup.


User-added image

NOTE:  If you have an existing Linksys cloud account, you can Log in and go to Set Up a New Product > Set Up a New Velop System.

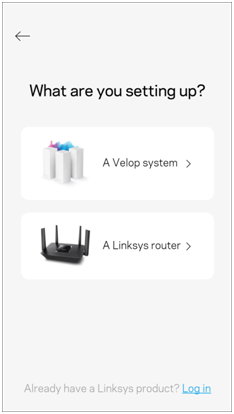

Step 3:
Select A Velop system.

User-added image

Step 4:
Read the Terms and Conditions agreement and tap Agree to continue.

User-added image

Step 5:
You may be prompted to turn on the Bluetooth on your iOS device or iPhone®.  Bluetooth is used for setup purposes only.  Tap Turn on Bluetooth to automatically turn ON the Bluetooth.



User-added image User-added image
                 Most iPhones                                        iPhone X

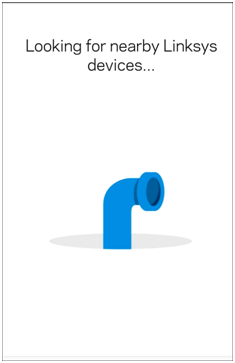

Step 6:
Setup will look for your node.

User-added image

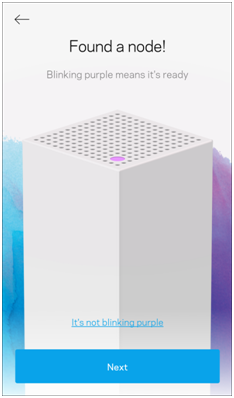

Step 7:
Once your node has been found, tap Next.

User-added image

Setup will now check for your internet connection.

User-added image

NOTES:
  • If no internet connection is found after some time, you might see the I want to enter my ISP settings manually link.  Tap the link if you need to enter your settings (e.g., Static WAN IP address) manually.
  • If you have a PPPoE connection, you will be prompted to enter your PPPoE username and password.

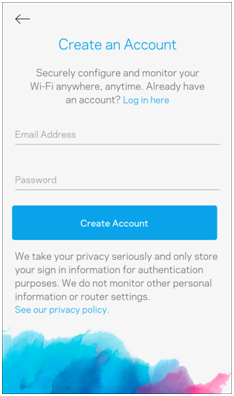

Step 8:
Create a Linksys cloud account by entering an email address and password in the fields provided.  Tap Next to proceed.  If you already have an account, tap Log in here

User-added image

Step 9:
Personalize your home Wi-Fi by creating a Wi-Fi name and password.  Once done, tap Next.

User-added image

If you are prompted to connect to your new Wi-Fi name, go to your mobile phone's Settings > Wi-Fi and connect to your new Velop Wi-Fi name.  If you closed the app to do this, reopen it to continue the setup.

Step 10:

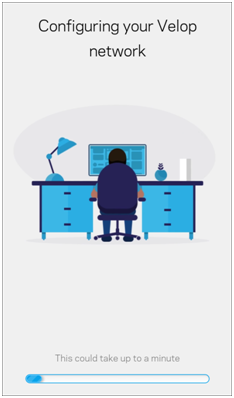

The app will now configure your Velop network.

User-added image

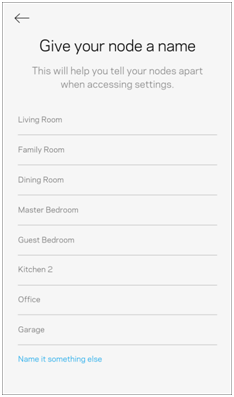

Step 11:
Give your node a name then tap Next.


User-added image

NOTE:  It is recommended that the location name corresponds to the actual location of your node in the home.  This will allow you to better identify multiple nodes through the Linksys app.  To customize the name, tap Name it something else.

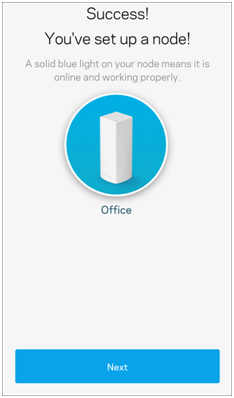

Step 12:
On the Success! screen, tap Next.


User-added image

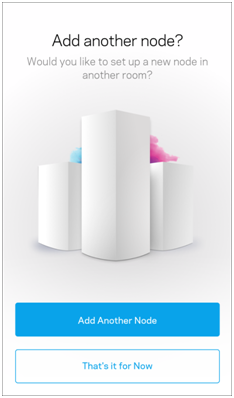

NOTE:  If you want to add a node, tap Add Another Node.  Otherwise, tap That’s it for Now.  You can also add a node later by logging in to the Velop dashboard.  For instructions, click here.

User-added image

Step 13:

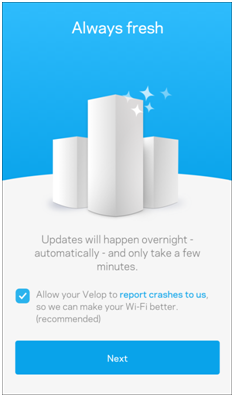

Once the Always fresh screen appears, tap Next.

User-added image

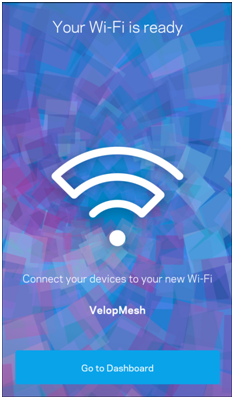

The node will do a firmware check to see if your node is up to date.  If a new firmware is available, the app will update automatically.  Otherwise, you will land on the Your Wi-Fi is ready screen.

User-added image

IMPORTANT:  After setting up your node, change the Velop’s admin password.  A random, secure admin password was created during setup (this password will not be displayed).  Use the admin password to log in to your Velop system if you don’t have an internet connection or if our server is temporarily down for maintenance.  To learn how to change the admin password, click here


Related Videos:

Setting up the first node of your Velop system using an Android™ device (VIDEO)
Setting up your first node using a PPPoE connection (VIDEO)
Adding a node to your Velop system (VIDEO)
