How to log in to the Linksys Intelligent Mesh's dashboard while on Bridge Mode

When on Bridge Mode, your node will not have its own separate network.  All nodes and client devices connected to your WiFi or to the existing modem router (gateway) will be on the same network and can communicate with other devices within the network.

This article will help you log in to your mesh system while your node is set on bridge mode.



Log in through the Linksys app

NOTE:  Steps and images may vary depending on the operating system of your mobile device.  In most of the examples below, an iOS device is used.

Step 1:
Connect your mobile device to your WiFi and launch the Linksys app.

Step 2:
Tap on Manage Your Wi-Fi.

NOTE:  If you are using an Android™ device, tap on Log in instead.



Step 3:
Once prompted, enter the necessary credentials for your account and tap Log in.



For local access, tap Router Password for iOS or Use Router Password for Android, enter your password, then tap Log in.


Step 4:
You will be redirected to the dashboard on bridge mode.

For iOS:



For Android:


NOTE:  Some features will be disabled when on bridge mode, including Parental Controls, Priority, custom internal IP addresses, and other advanced features.

You should now have successfully accessed the dashboard while on bridge mode.




Log in through the LinksysSmartWiFi.com

Step 1:
Launch a browser and enter “192.168.1.1” in the Address bar, then hit [ENTER].

NOTE:  You can check your IP address using the Linksys app by going to the Menu icon then tapping on Network Administration > IP Details.  Tap on your parent node and look for the IP address.

Step 2:

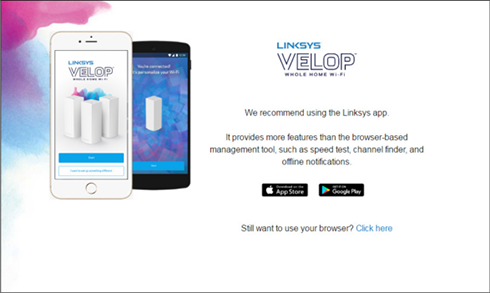

Click on the Continue to Linksys Smart Wi-Fi link.



Step 3:
Enter your admin password on the Router Password field then click Sign In.



Step 4:
You will be redirected to the dashboard on bridge mode.  Similarly, some features will be disabled when on bridge mode including Parental Controls, Priority, custom internal IP addresses, and other advanced features.



You should now have successfully accessed the dashboard while on bridge mode.
