Configuring Access Rules for inter-VLAN traffic management on your LRT2x4 router

Inter VLAN Routing allows different VLANs to communicate with each other and allows all traffic pass through between VLANs.

The example below demonstrates how to configure access rules to administer VLAN traffic.

In the topology below, the company has four (4) departments: HR, Sales, R&D, and Advertising.  These four (4) VLANs are used to separate traffic using the following information:


DepartmentVLANIP addressSubnet Mask
HRVLAN 1192.168.1.0255.255.255.0
SalesVLAN 2192.168.2.0255.255.255.0
R&DVLAN 3192.168.3.0255.255.255.0
AdvertisingVLAN 4192.168.4.0255.255.255.0

User-added image

Listed below are the requirements of network traffic administration, and the access rules that need to be created to achieve them.


  • Requirement 1: VLAN 1 can access the Web server under VLAN 2, other traffic should be restricted.  The Web server IP address is 192.168.2.100.
  • Requirement 2: VLAN 3 can access the Web server under VLAN 4, other traffic should be restricted.  The Web server IP address is 192.168.4.100.
  • Requirement 3: VLAN 1 and VLAN 3 cannot communicate to each other.
  • Requirement 4: VLAN 2 and VLAN 4 cannot communicate to each other.
  • Requirement 5: VLAN 1 and VLAN 4 can communicate to each other.
  • Requirement 6: VLAN 2 and VLAN 3 can communicate to each other.

User-added image

Step 1:
On your web browser, access your Linksys Gigabit VPN router.  For instructions, click here.

Step 2:

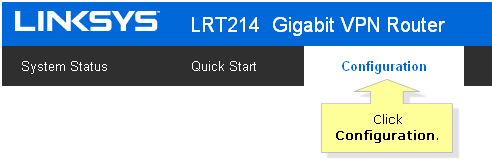

Click Configuration.

User-added image

Step 3:

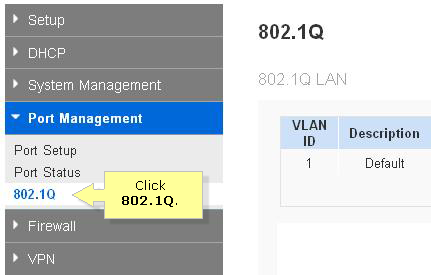

Click Port Management > 802.1Q.  Click User-added image.

User-added image

Step 4:

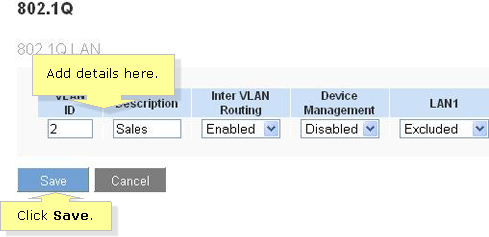

Add details for VLAN 2, VLAN 3 and VLAN 4.  Click Save after every instance.

User-added image

User-added image

  • VLAN ID – Indicates VLAN ID (VID).
  • Description – The name of the VLAN.
  • Inter VLAN Routing – If the VLAN is allowed to communicate with other sets of VLAN, the status is shown as Enabled.  The default value is Disabled.
  • Device ManagementEnabled or Disabled, if this VLAN is allowed to access Web GUI, the status will be shown as Enabled. The default value is Disabled.
  • LAN1 ~ LAN4 – Indicate VLAN status of physical LAN port.  It could be Tagged, Untagged or Excluded.
Step 5:
Set VLAN 1 to VLAN 4’s Inter VLAN Routing as Enabled.

User-added image

Step 6:

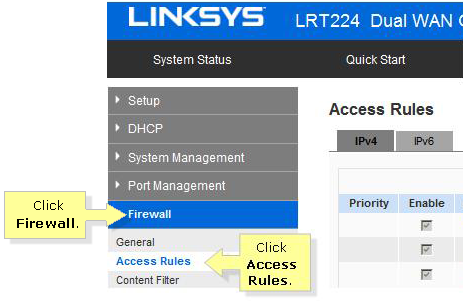

Click Firewall > Access Rules.

User-added image

Step 7:
Set the following Access Rules:

Requirement 1 access rule
Requirement 2 access rule
Requirement 3 access rule
Requirement 4 access rule

Requirement 1 access rule

Configure two (2) access rules to deny all traffic between VLAN 1 and VLAN 2 first, and configure an access rule to allow HTTP traffic from VLAN 1 to 192.168.2.100.

Deny:


User-added image

Allow:


User-added image

Requirement 2 access rule

Configure two (2) access rules to deny all traffic between VLAN 3 and VLAN 4 first, and configure an access rule to allow HTTP traffic from VLAN 3 to 192.168.4.100.

Deny:


User-added image

Allow:


User-added image

Requirement 3 access rule

Configure two (2) access rules to deny all traffic between VLAN 1 and VLAN 3.


User-added image

Requirement 4 access rule

Configure two (2) access rules to deny all traffic between VLAN 2 and VLAN 4.

User-added image

You should now be able to administer VLANs traffic with Access Rules.
