Getting to know the Linksys E5400 AC1200 Dual-Band WiFi 5 Router

The Linksys E5400 AC1200 Dual-Band WiFi 5 Router is a dual-band router that lets you enjoy the power of Wi-Fi technology.  It delivers enhanced speed, range and security for all your networking needs.  With AC1200 speeds, you'll be able to swiftly stream HD videos, surf, email, play games online, browse and chat.

User-added image

Features
  • AC1200 Dual-Band
  • Browser-based setup wizard
  • 802.11 a/b/g/n/ac
  • Speeds of up to 300 Mbps (2.4 GHz) and up to 867 Mbps (5 GHz)
  • Beamforming Technology
  • Guest Network
  • Parental Controls
  • Two adjustable antennas (non-detachable)
  • Four Fast ethernet ports + one Fast internet port

Product Requirements
  • Working internet connection
  • Wireless or wired computer for setup
  • Latest web browser version of Google Chrome™, Firefox®, Safari® (for Mac® or iPad®), Microsoft Edge® or Internet Explorer®

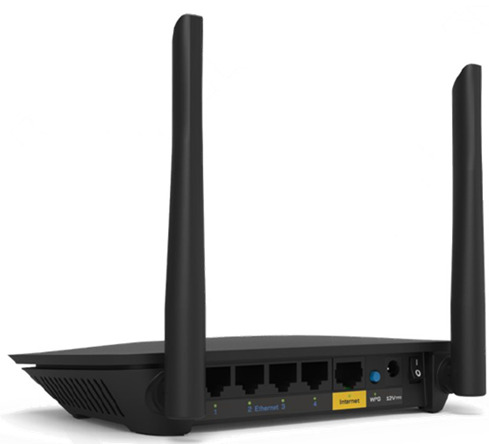

BACK PANEL

User-added image

HARDWARE
  • Ports / Buttons /  Switch
    • Power port
    • One 10/100 Mbps internet port
    • Four 10/100 Mbps ethernet ports
    • Reset button (located at the bottom)
    • Wi-Fi Protected Setup™ (WPS) button
    • Rocker style power switch (EMEA only)
  • Indicator lights
    • Back panel WPS, Internet (WAN port), Ethernet (LAN ports)
  • Antennas
    • Two external, adjustable, non-detachable antennas
