Unmanaged Switches

LAN parties. 4K streaming. And more.

More ports, more
reliable speed

Grow your network and supercharge your speeds with multiple Gigabit ports, each delivering up to 2000 Mbps of interruption-free network speed (full duplex).

TVs

Streaming Devices

Gaming Consoles

Security Cameras

WiFi Routers

Durable & space-saving

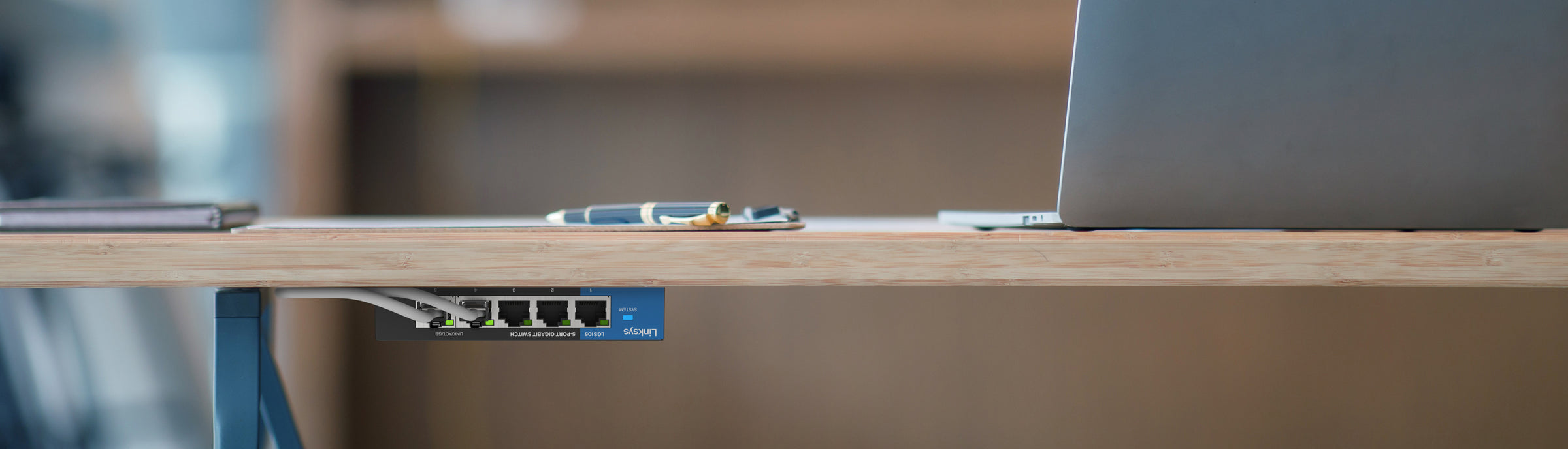

Plastic isn't fantastic when it comes to switches — that's why our sturdy switch sports a durable metal case. Use the included mounting kit to place your switch under your desk or anywhere else you wish.

QoS for peak performance

Things like your 4K smart TV or 4K IP security camera need lots of bandwidth for best performance; QoS prioritizes these devices so your connection has minimal lag or drops — no matter how many users or devices are on your network at the same time.

Whisper quiet

We're not a fan of noise — that's why our network switch uses a fanless design for energy-efficient cooling without disturbing the peaceful ambience of your home or small office.

Save energy, save money

Energy-smart touches — like fanless cooling, cable length detection, and ports that shut off when not in use — all help use less power for a fuller wallet and happier planet.

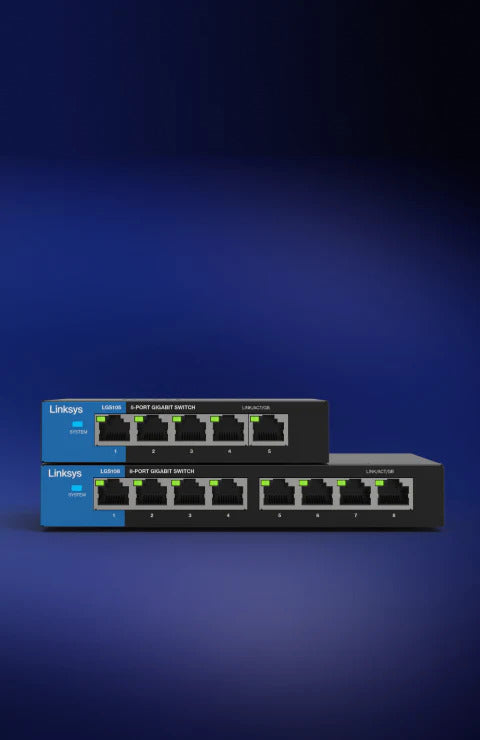

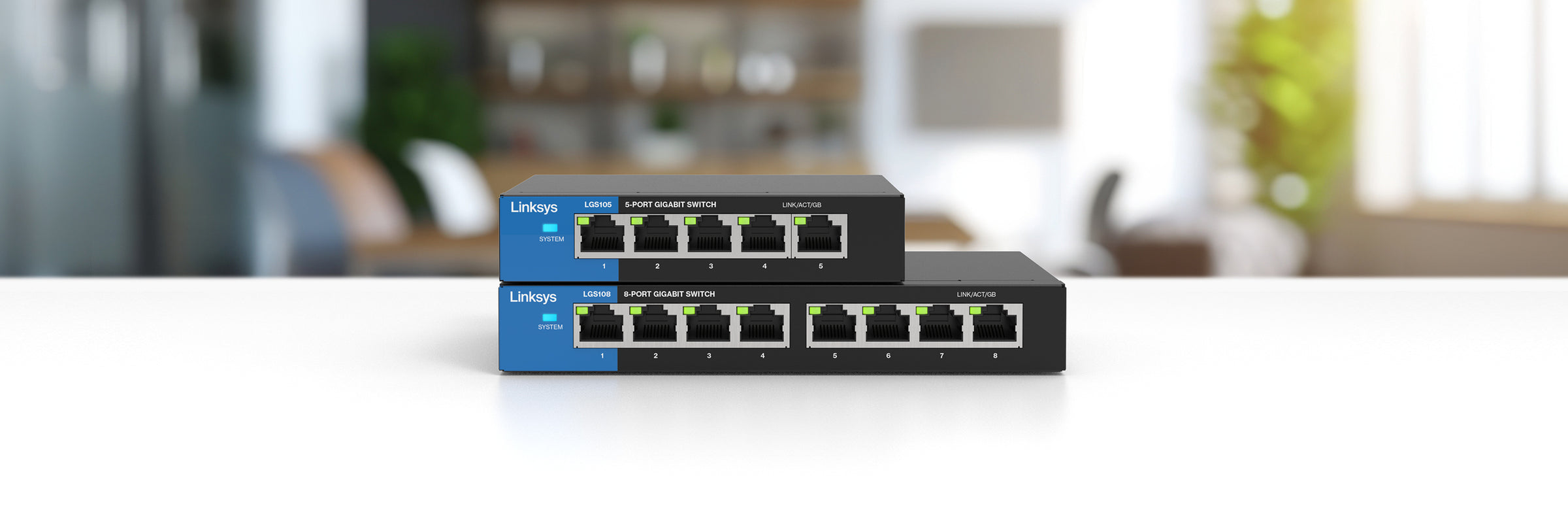

Linksys Gigabit Unmanaged Switches

Standard-Based Compatibility: Complies with networking standards and is designed to be compatible with any standard-based network.

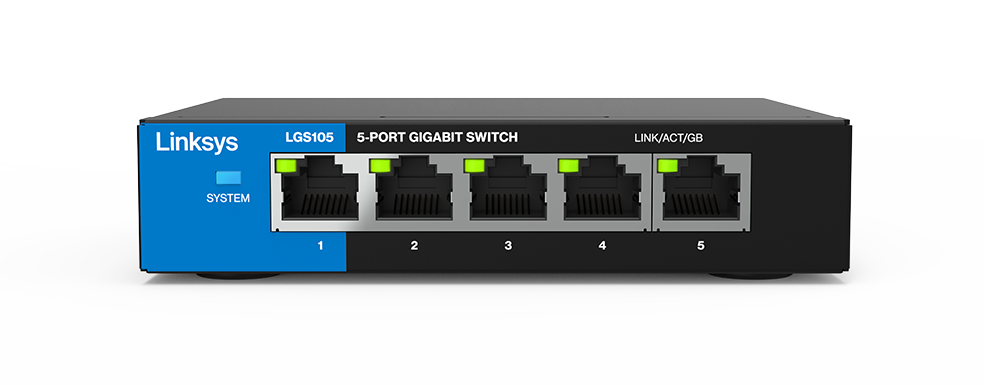

5-Port Gigabit Unmanaged Switch

8-Port Gigabit Unmanaged Switch

SKU

LGS105

LGS108

Number of ports

5x Gigabit ports

8x Gigabit ports

Standards and Protocol
  • IEEE 802.1p - Class of Service
  • IEEE 802.3 - Ethernet
  • IEEE 802.3u - 100BASE-TX
  • IEEE 802.3x - Full-duplex flow control
  • IEEE 802.3ab -1000BASE-T
  • IEEE 802.3az - Energy-Efficient Ethernet
  • IEEE 802.1p - Class of Service
  • IEEE 802.3 - Ethernet
  • IEEE 802.3u - 100BASE-TX
  • IEEE 802.3x - Full-duplex flow control
  • IEEE 802.3ab -1000BASE-T
  • IEEE 802.3az - Energy-Efficient Ethernet
Fanless design - Energy efficiency and silent operation

Bandwidth

10 Gbps (non-blocking)

16 Gbps (non-blocking)

Max MAC entries

2000

4000

LEDs
  • Port LED - Speed, Link, Activity
  • System LED – Power Status
  • Port LED - Speed, Link, Activity
  • System LED – Power Status
What’s inside?
  • 1x Linksys 5-Port Gigabit Unmanaged Switch
  • 1x Power adapter
  • 1x Quick Start Guide
  • Mounting kit
  • 1x Linksys 8-Port Gigabit Unmanaged Switch
  • 1x Power adapter
  • 1x Quick Start Guide
  • Mounting kit
Physical Specifications

119.9 x 88.9 x 26.9 mm

166.3 x 88.6 x 25.8 mm
